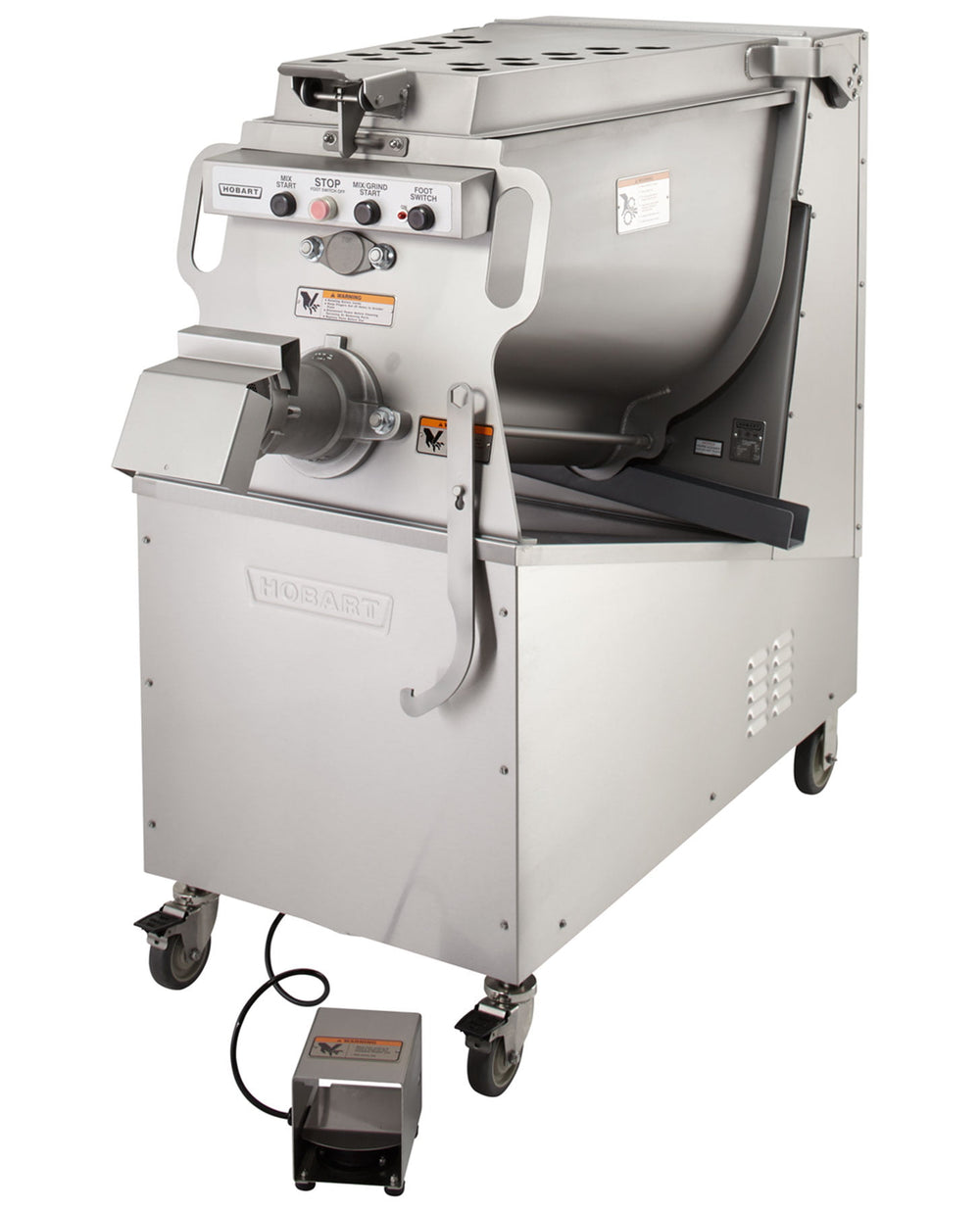

Hobart Meat Mixer / Chopper / Grinder

Hobart mixer-grinders mix and grind meat without smashing it. Both ergonomic and simple to use, Hobart mixer grinders are designed to increase production and decrease labor time. While doing so, they also demonstrate one very important thing to your customers—quality and consistency.

General: The MG1532 has a 7.5 H.P. grind motor, a 1 horsepower. mix motor, and an 8-foot length cord and plug power connection. Casters, air-drive foot switch, drain pan, and splash shield are standard. Available voltages are 208/60/3 and 480/60/3.

Capacity: The MG1532 Mixer / Grinder is an efficient and versatile kitchen appliance with a meat hopper capacity of up to 150 pounds. This mixer-grinder is perfect for processing a wide range of meat products, from fresh to frozen, with a grinding rate of 35-40 pounds of boneless meat per minute through a 1/8" plate. Whether you're working with flaked or stick-form meat, the MG1532 ensures smooth and consistent results every time. The only requirement is that the meat is tempered to 26°F or higher for best performance.

Stay-Sharp Knife and Plates: The Hobart Stay-Sharp knife & plates are made from an alloy steel that holds its edge longer than standard carbon steel. Stay-Sharp plates also can be resharpened many more times than regular plates. These two features allow a substantial lifetime cost benefit with the Hobart StaySharp plates.

Feeding System: The meat grinder is powered by two separate drive systems. A 1 H.P. motor drives the heavy-duty steel mixing arm. The arm rotates at 23 rpm and can easily be removed from the hopper for cleaning. The conveyor screw extends the full length of the hopper and cylinder. The screw rotates at a speed of 216 rpm. By depressing the MIX/GRIND START button both the mixing arm and the screw are operated. Both mixing and grinding are stopped when the STOP switch is depressed.

Cleaning: The mixing arm, conveyor screw, cylinder, and conveyor screw drive-shaft seal, and mix arm seal are removable from the mixer-grinder for cleaning.

Special Equipment: When the grinder is used with a side feed as a second cut machine, an adapter ring is required to attach to Hobart grinders, and special adapters are required to attach to other makes. When ordering a side-feed adapter for non-Hobart grinders, specify the knife and plate size.

Finish: The mixer grinder consists of a glass bead-finished stainless steel hopper, and stainless steel panels to enclose the base assembly and motors. The end ring and cylinder are stainless. steel. The mixing arm and conveyor screw are tinned. The casters
are stainless steel and nickel-chrome plated.
