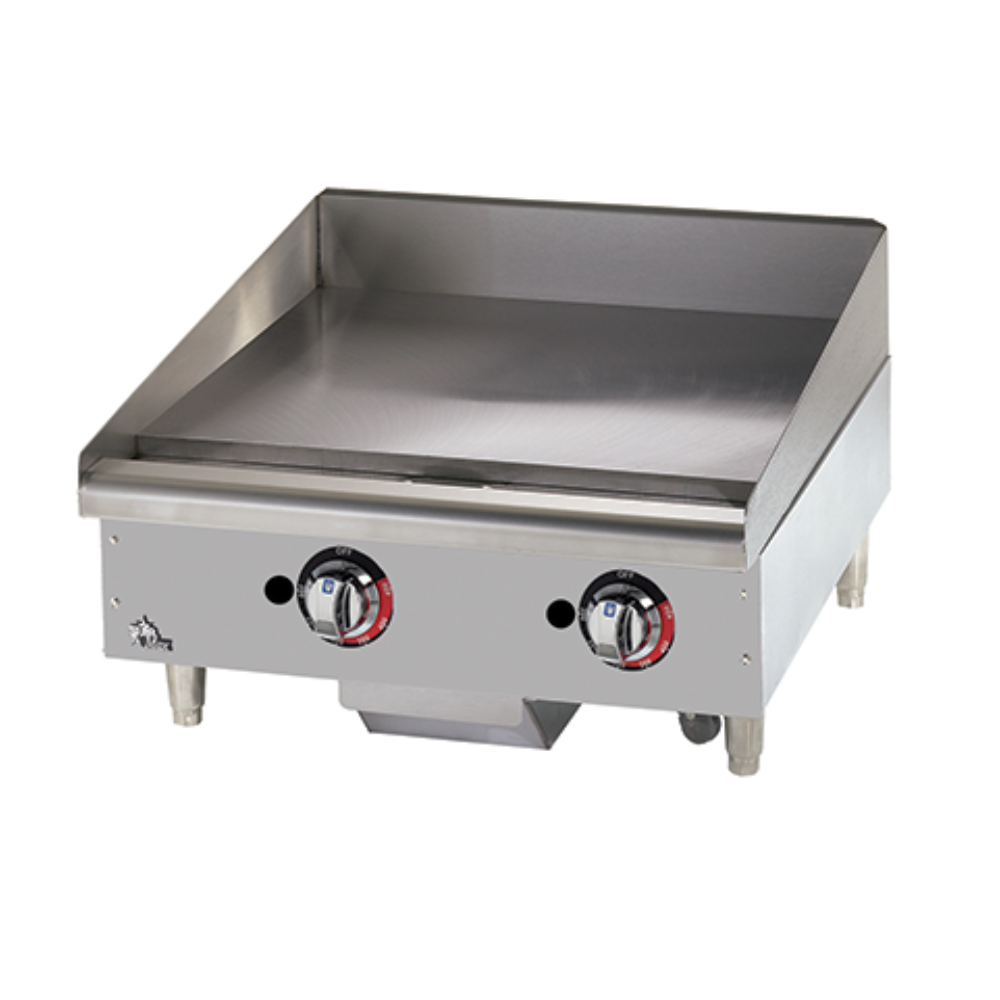

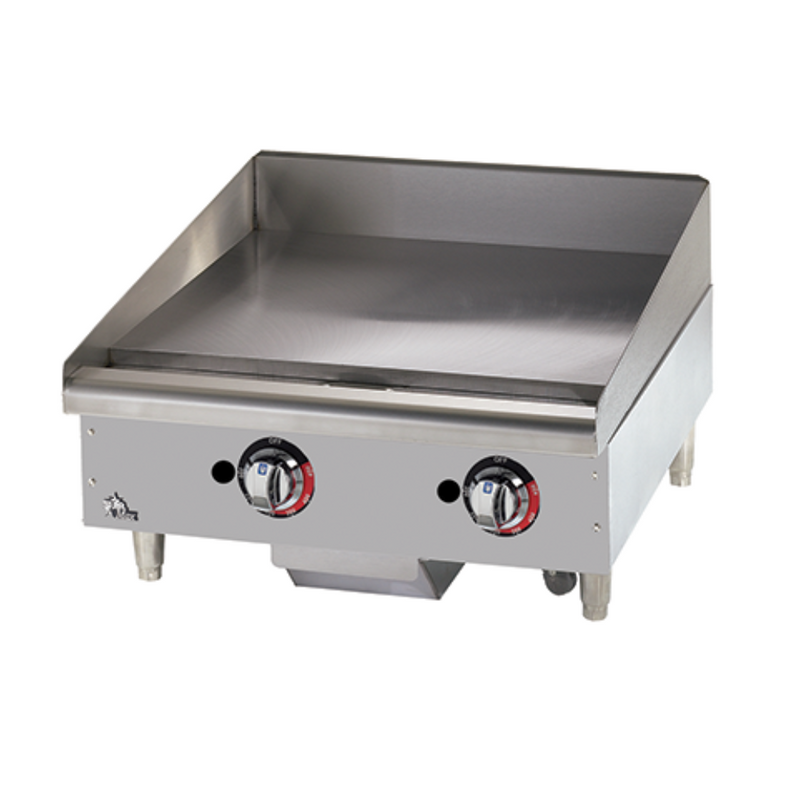

Star-Max 24" Countertop Heavy Duty Griddle with Thermostat Controls Natural Gas 56,600 BTU

ITEM#: 624TF

Star-Max® gas griddles are a perfect match for the budget minded operator. For breakfast, lunch or dinner, the Star-Max griddles out-perform the competition. Star-Max® griddles feature a 1” thick polished steel griddle plate. 28,300 BTU aluminized burner every 12” of width controlled by a embedded modulating thermostatic, 3/4” N.P.T. male gas connection with convertible pressure regulator, and 4” adjustable legs. Griddles operate on Natural gas.

Gas griddles are constructed with stainless steel panel and double wall aluminized steel side panels. Griddle plate is 1” (2.54 cm) thick, 4-1/2” high tapered wrap-around stainless steel splash guard come standard. Unit has a 3-1/4” (8.3 cm) wide front grease trough with grease chute and a 4-1/2 quart (4.26 L) stainless steel grease drawer. Unit is heated by 28,300 BTU aluminized steel burner for every 12” (30.5 cm) of griddle width and is controlled by a modulating thermostat embedded into griddle plate. Thermostat knobs are protected by a stainless steel bull nose front. An automatic safety pilot is provided for each burner. Griddles are supplied with 4” (10.2 cm) high die cast nickel plated steel legs that have a 1-3/8” (3.5 cm) adjustment. Gas connection is 3/4” N.P.T. male and a convertible pressure regulator is provided. Units are approved for installation within 6” (15.2 cm) of combustible and non-combustible surfaces and are UL Gas certified and UL EPH sanitation listed.

Retail Price:

Why is the price hidden?

Out of stock. Order now or be notified when we receive inventory.

Order now to reserve the item

Spec Sheet

Shipping Options

Available for
Delivery

Free In-Store Pick Up. T&C Apply. Click Here For Info

Star-Max® gas griddles are a perfect match for the budget minded operator. For breakfast, lunch or dinner, the Star-Max griddles out-perform the competition. Star-Max® griddles feature a 1” thick polished steel griddle plate. 28,300 BTU aluminized burner every 12” of width controlled by a embedded modulating thermostatic, 3/4” N.P.T. male gas connection with convertible pressure regulator, and 4” adjustable legs. Griddles operate on Natural gas.

Gas griddles are constructed with stainless steel panel and double wall aluminized steel side panels. Griddle plate is 1” (2.54 cm) thick, 4-1/2” high tapered wrap-around stainless steel splash guard come standard. Unit has a 3-1/4” (8.3 cm) wide front grease trough with grease chute and a 4-1/2 quart (4.26 L) stainless steel grease drawer. Unit is heated by 28,300 BTU aluminized steel burner for every 12” (30.5 cm) of griddle width and is controlled by a modulating thermostat embedded into griddle plate. Thermostat knobs are protected by a stainless steel bull nose front. An automatic safety pilot is provided for each burner. Griddles are supplied with 4” (10.2 cm) high die cast nickel plated steel legs that have a 1-3/8” (3.5 cm) adjustment. Gas connection is 3/4” N.P.T. male and a convertible pressure regulator is provided. Units are approved for installation within 6” (15.2 cm) of combustible and non-combustible surfaces and are UL Gas certified and UL EPH sanitation listed.

Spec Sheet
