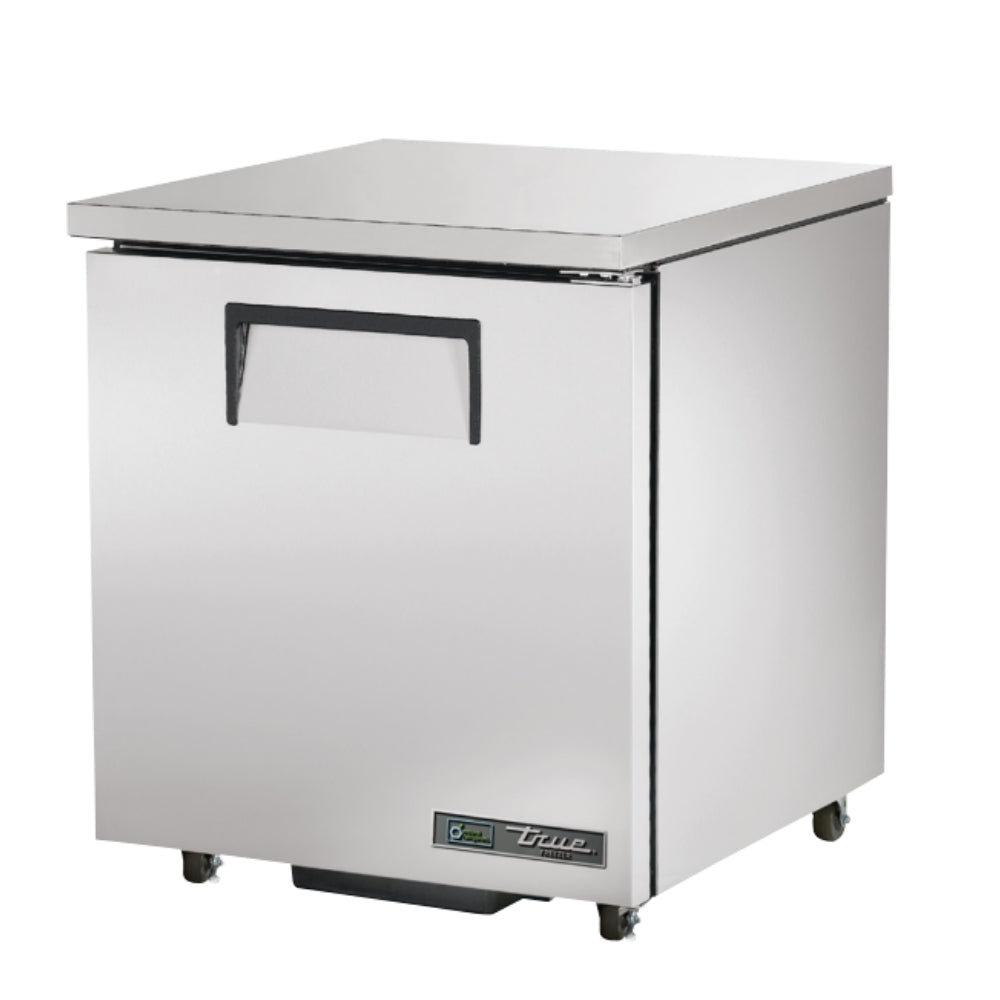

True 27" Undercounter Freezer with 1 Solid Door, ADA Compliant - TUC-27F-ADA

True's TUC-27F-ADA Undercounter Freezer with 1 Solid Door, ADA Compliant uses the highest quality materials and oversized refrigeration systems providing the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today's food service marketplace.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero (0) ozone depletion potential (ODP) and three (3) global warming potential (GWP).
• Extra-large evaporator coil balanced with a higher horsepower compressor and large condenser, maintaining -10°F (-23.3°C) cabinet temperatures, ideally suited for both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating evaporator fan motor and larger fan blades provide an efficient, low velocity, high-volume airflow design, ensuring faster temperature recovery and shorter run times in busy food service environments.
• Condensing unit access is located in the back of the cabinet, which slides out for easy maintenance.
• The automatic defrost system is time-initiated and time-terminated.


Cabinet Construction

• Exterior: Stainless steel front, top, and ends with corrosion-resistant GalFan coated steel back.
• Interior: Attractive, NSF-approved, clear-coated aluminum liner with a stainless steel floor and coved corners.
• Insulation: The entire cabinet structure and solid door are foamed-in-place with high-density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• 3" (77 mm) diameter stem castors allow for easy placement, with a 34" (864 mm) work surface height compliant with American Disabilities Act (ADA) requirements.


Door

• Stainless steel exterior with a clear aluminum liner to match the cabinet interior.
• The door is fitted with a 12" (305 mm) long recessed handle foamed-in-place with a sheet metal interlock for permanent attachment.
• Positive seal self-closing door with a 90° stay-open feature; doors swing within cabinet dimensions.
• Magnetic door gaskets are one-piece construction, removable without tools for easy cleaning.


Shelving

• Two (2) adjustable, heavy-duty PVC-coated wire shelves measuring 23 1/4"L x 16"D (591 mm x 407 mm).
• Four (4) chrome-plated shelf clips are included per shelf.
• Shelf support pilasters are made of the same material as the cabinet interior; shelves are adjustable on 0.5" (13 mm) increments.


Countertop Pan Capacity

• Comes standard with 16 (1/6 size) clear polycarbonate, NSF-approved, food pans measuring 6 .87"L x 6.25"W x 4"D (175 mm x 159 mm x 102 mm) in the countertop prep area. Also accommodates 6" (153 mm) and 8" (204 mm) deep food pans (supplied by others).
• The countertop pan opening is designed to fit varying-sized pan configurations with available pan divider bars. Varying size pans supplied by others.


Model Features

• The evaporator is epoxy-coated to eliminate potential corrosion.
• NSF/ANSI Standard 7 compliant for open food products.


Electrical

• Unit is completely pre-wired at the factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
