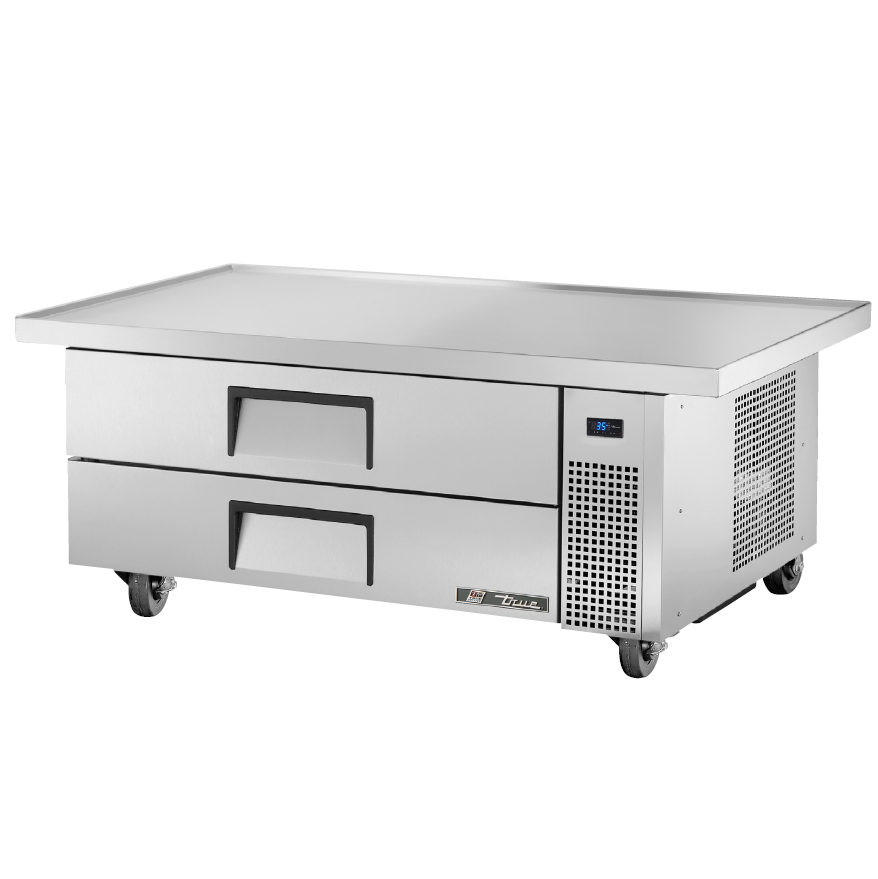

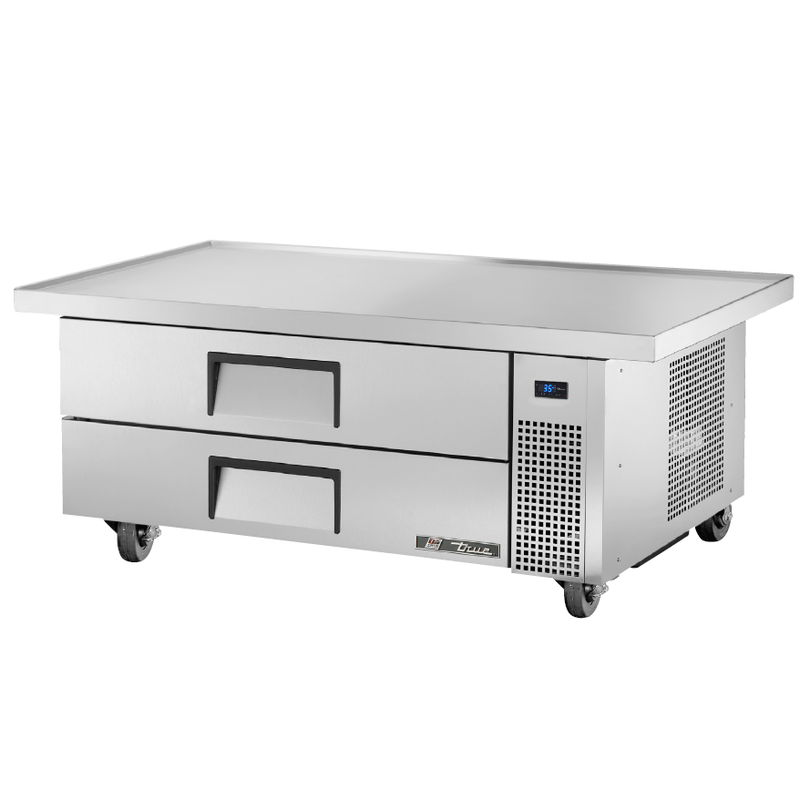

True 60" Refrigerated Chef Base with 2 Drawers

FEATURES:

DESIGN

True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety, and the best value in today’s foodservice marketplace

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.
• Oversized, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.
• Extra-large evaporator coil balanced with higher horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• Sealed, cast iron, self-lubricating evaporator fan motor(s) and larger fan blades give True chef base units a more efficient, low velocity, high volume airflow design. This unique design ensures faster temperature recovery and shorter run times in the busiest of foodservice environments
• Condensing unit accessed from behind side grill; slides out for easy maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel front, top, and sides. Matching aluminum finished back.
• Interior - attractive, NSF approved, white aluminum liner. Stainless steel floor with coved corners.
• Insulation - entire cabinet structure and drawer facings are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• 4" (102 mm) diameter plate castors - locks provided on front set.
• The cabinet top is one piece, heavy-duty reinforced 300 series stainless steel. Drip-resistant “V” edge protects against spills. Supports up to 717 lbs. (326 kg).

DRAWERS

• Stainless steel exterior drawer facings and liners. Stainless steel drawer frames.
• Each drawer is fitted with a 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
• Heavy-duty stainless steel drawer slides and rollers. Removable without tools for easy cleaning.
• Magnetic drawer gaskets of one-piece construction, removable without tools for ease of cleaning.
• Each drawer accommodates three (3) full size 12"L x 20"W x 4"D (305 mm x 508 mm x 102 mm) food pans (sold separately).
• Drawers support a wide variety of incremental pan size configurations.

MODEL FEATURES

• The evaporator is epoxy coated to eliminate the potential for corrosion.
• Exterior digital temperature display.
• NSF/ANSI Standard 7 compliant for open food products.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

SPECIFICATIONS:

• Drawers: 2
• Width: 60"
• Depth: 32 1/8"
• Height: 20 3/8"
• HP: 1/3
• Voltage: 115/60/1
• Amps: 8.1
