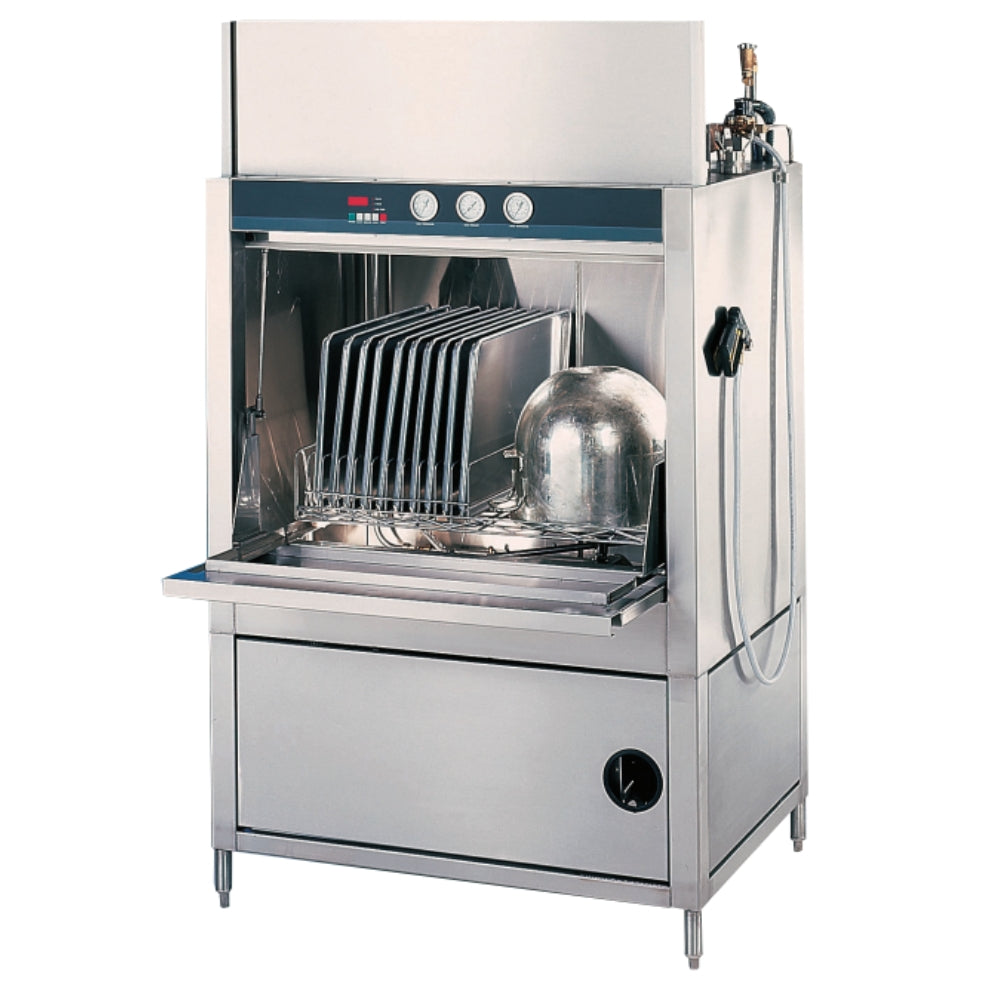

Champion Door Type Front Feed Pot / Pan Rack Dishwasher
ITEM#: PP-20-SD-E
Product Overview
The Champion PP-20 Front-Feed Pot/Pan Rack Dishwasher is a compact, high-efficiency powerhouse built to handle the toughest cleaning tasks in bakeries, meat and poultry operations, candy production, and institutional kitchens. Engineered for heavy-duty commercial use, it effortlessly washes and sanitizes everything from sheet pans and meat lugs to large mixing bowls and machine parts accommodating items up to 140 quarts in size.
-
Heavy-Duty Stainless Steel Construction: Built for long-term durability in demanding industrial and commercial wash areas.
-
High-Capacity Washing: Handles up to 20 full-size pans or a wide variety of large cookware, utensils, and mixing equipment.
-
Front-Feed Pass-Through Design: Features a lift-up or split-door system that allows convenient loading and unloading from either side.
-
Powerful Wash System: 7.5 HP recirculating pump delivers high-velocity stainless-steel “V” jets that cut through baked-on soils and tough residues.
-
Adjustable Wash and Rinse Cycles: Digital controls let you customize cycle lengths to match soil levels and load type.
-
Built-In Booster Heater: Ensures consistent high-temperature sanitizing and optimal rinse performance every cycle.
-
Efficient Recirculating Water System: Reuses wash water to reduce consumption while maintaining strong wash pressure.
-
Digital Control & Information Center: Simple push-button interface with clear status indicators for easy operation.
-
Dual Filtration System: Easy-to-remove double filter captures debris and simplifies cleaning and maintenance.
-
External Rinse Hose: Integrated pre-rinse and wash-down spray hose speeds up loading and cleanup.
-
Moisture-Resistant Control Gauges: Designed to perform reliably in steamy environments.
-
Versatile Heating Options: Available in both electric and steam-heated configurations to suit your facility’s setup.
-
Maintenance-Free Hub Assembly: Engineered for continuous operation and minimal service requirements.
-
Precision Spray Pattern: Optimized “V” jet system ensures full coverage and consistent results.
- Quick Cycle Time: Typical 5-minute wash/rinse cycle (27 seconds wash/rinse on standard cycle) maximizes productivity.
Perfect for bakeries, restaurants, hospitals, and catering operations, the PP-20 provides the muscle of an industrial washer with the efficiency and intelligence of modern digital controls ensuring cleaner pots, pans, and utensils with every cycle.
Retail Price:
Request a Quote
Why is the price hidden?

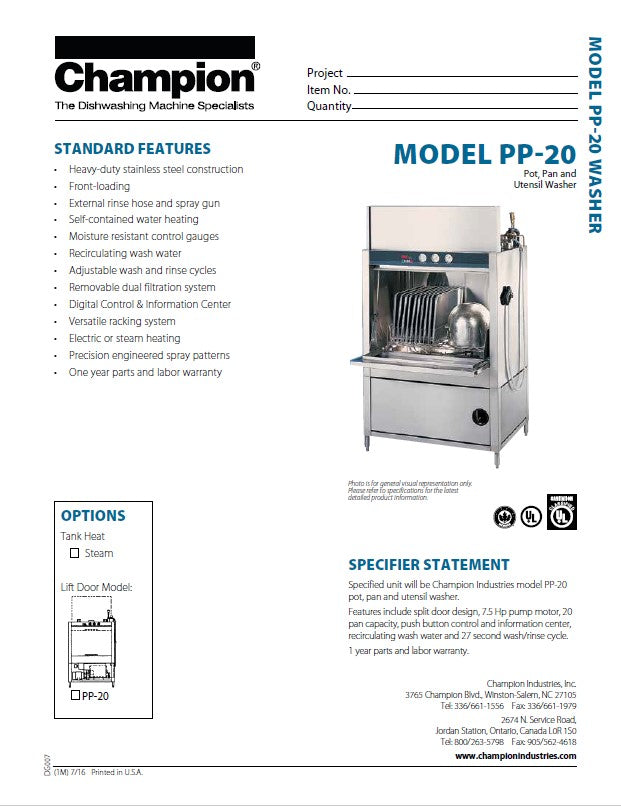

Specifications
Item Number | PP-20-SD-E |
Exterior Width | 51.5 Inches |
Exterior Depth | 36 Inches |
Exterior Height | 83 Inches |
High or Low Temp | High Temp |
Amps | 24.9 Amps |
Voltage | 208 Volts |
Hertz | 60 Hz |
Phase | 3 Phase |
