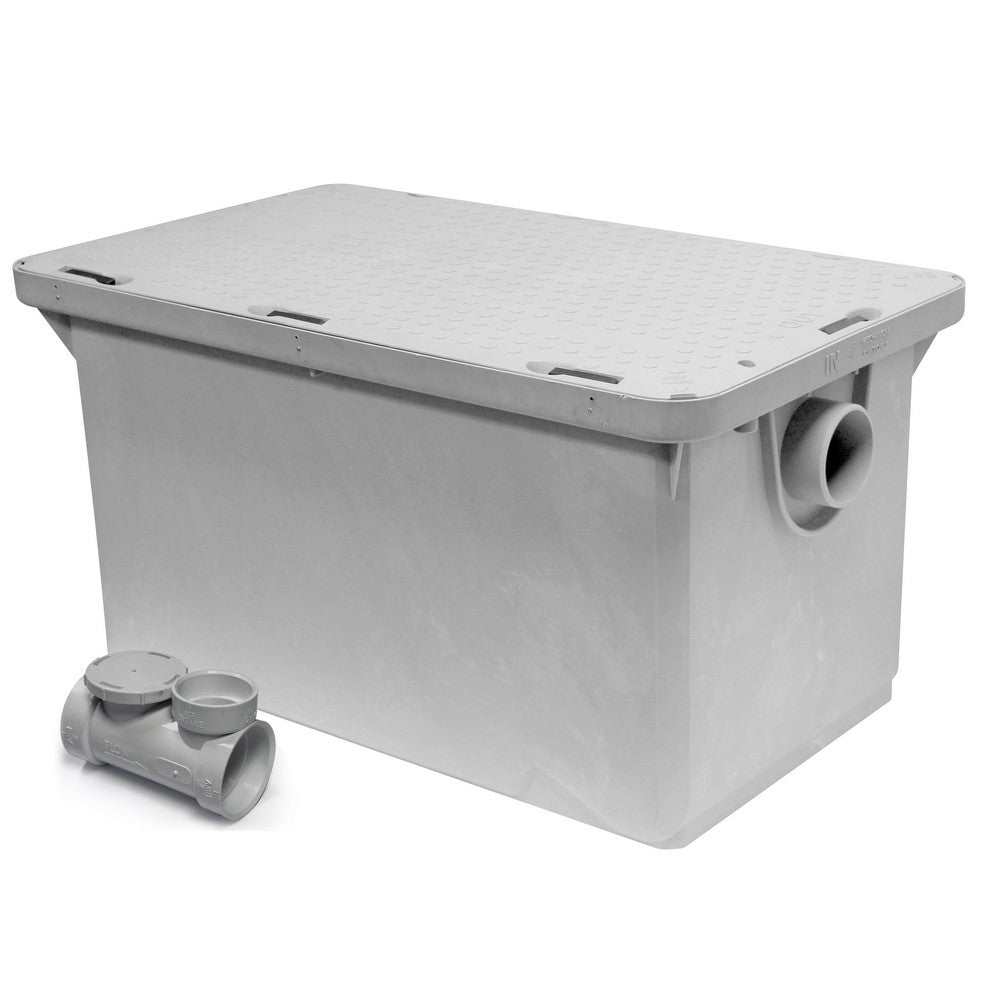

Endura 25 Gallon Grease Trap with 2" Connection
ITEM#: GT25 MFR#: 3925XTA02
Product Overview
Found both in-floor and on-floor when installed, the Endura25XT is the mainstay of the Endura line being the most commonly sized and selected products in the line. The 25XT models include our latest development features, such as finger pockets adjacent to latches for tool-free access and a smooth internal and external tank profile for simplified operational cleaning. All models are supplied with their applicable compact flow control device. NSF Certified to CSA B481.1, ASME A112.14.3 & PDI G101. One piece, stackable riser extensions (3925AX6) are available for in-floor installations.
Features:
- Tank, lid and baffles injection molded in engineered thermoplastic that will not corrode, chip, or peel, even under the most severe applications
- Supplied with accessible flow control device (HxHxH) for solvent weld installation to ABS and PVC DWV systems
- Smooth tank profile inside and out for ease of maintenance and cleaning
- EZ-Open cover latching system provides simple fastener free solution for regular maintenance access
- Tool-Free access with finger pockets adjacent to EZ-open cover latches.
- Tank installed using mechanical joint couplings (by others), allowing for connection with various piping materials
- Maximum service temperature rated at 220 Deg F/104 Deg C continuous discharge.
- 2" No-Hub connection compatible with DWV piping - 3" (03) models also available.
- Cover exceeds CSA B481.0 Class L - Proof load min. 600lb (270kg). Expected service load Max 300lb (135kg)
- Recessed silicone seal prevents foul odors from escaping in service
Retail Price:
2 IN STOCK
Order now to reserve the item
Chat with us for more information
Mon-Fri 9:00am - 5:00pm EST
Call us today +1 416-814-6199
Mon-Fri 9:00am - 5:00pm EST
Specifications
| Gallons Per Minute GPM (L/Sec) | 25 (1.6) |
| Grease Capacity Actual (ASME A112.14.3) | 72.55 lb (32.90 kg) |
| Average Efficiency% (Ibs) (ASME A112.14.3) | 0.988 |
| Operating Temperature Capabilities | 220°F (104°C) |
| Cover Load Rating – CSA B481.0 | L |
| Unit Weight (Empty) | 35.61 lb (16.153 kg) |
| Liquid Capacity | 30.6 gal (115.83 L) |
| Connection size (mechanical joint only) | 2″ |
