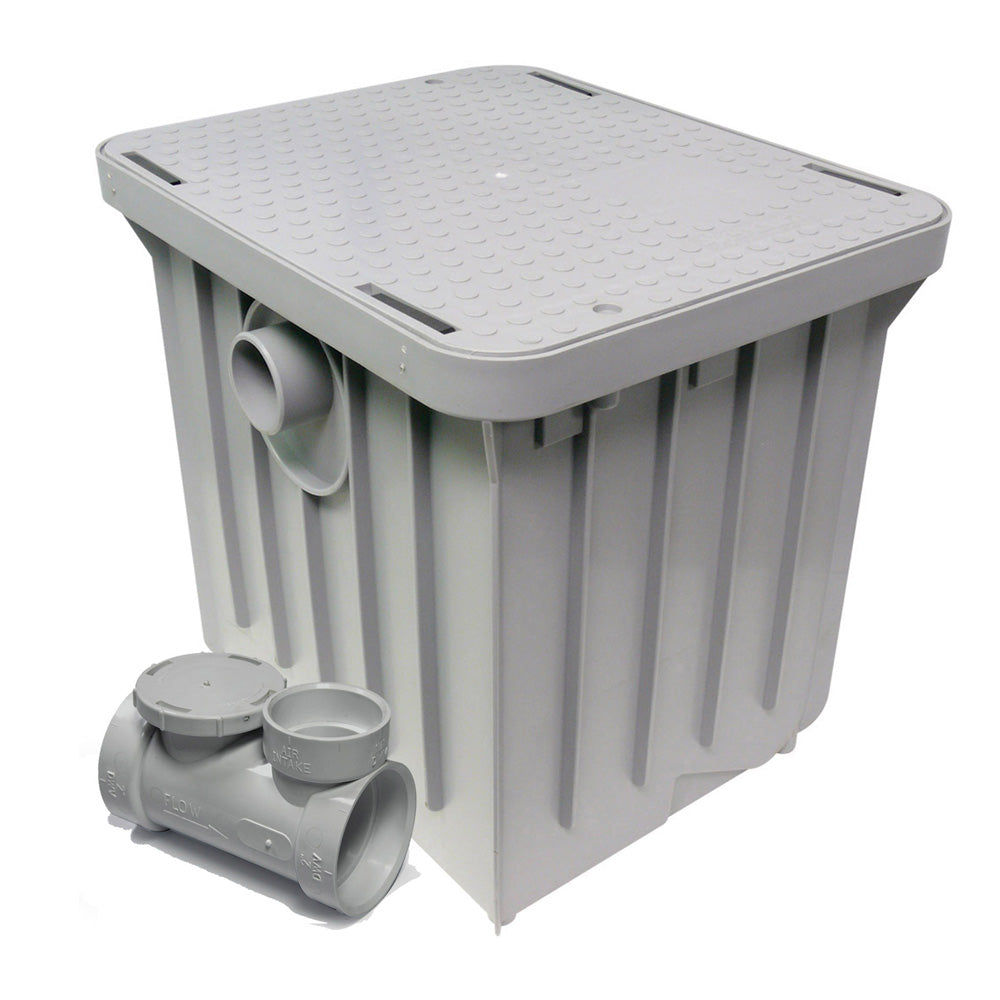

Endura 10 Gallon Grease Trap with 2" Connection
ITEM#: GT10 MFR#: 3910A02
Product Overview:
Using our most compact tank platform, the Endura10 uses a unique flow path to separate fats, oils, and grease. Installed in low flow applications such as food trucks, concession stands, and small kitchens, this model provides effective separation in a compact footprint. NSF Certified to CSA B 481.1, ASME A112.14.3 & PDI G101.
Features:
Using our most compact tank platform, the Endura10 uses a unique flow path to separate fats, oils, and grease. Installed in low flow applications such as food trucks, concession stands, and small kitchens, this model provides effective separation in a compact footprint. NSF Certified to CSA B 481.1, ASME A112.14.3 & PDI G101.
Features:
- Tank, lid and baffles injection molded in high performance engineered thermoplastic that will not corrode, chip, or peel, even under the most severe applications.
- Compact footprint compared to traditional solutions.
- Supplied with accessible flow control device (HxHxH) for solvent weld installation to ABS and PVC DWV systems.
- Maximum service temperature rated at 220 Deg F/104 Deg C continuous discharge.
- Lightweight but highly durable construction offers ease of handling, installation and product longevity compared to traditional interceptors.
- EZ-Open cover latching system provides simple fastener free solution for regular maintenance access.
- Tank and flow control installed using mechanical joint couplings (by others), allowing for connection with various piping materials.
- 2" No-Hub connection compatible with DWV piping.
- Cover exceeds CSA B481.0 Class L - Proof load min. 600lb (270kg). Expected service load Max 300lb (135kg).
- Recessed silicone seal prevents foul odors from escaping in service.
Retail Price:
$368.07
/ Each
Out of stock. Order now or be notified when we receive inventory.
Order now to reserve the item
Chat with us for more information
Mon-Fri 9:00am - 5:00pm EST
Call us today +1 416-814-6199
Mon-Fri 9:00am - 5:00pm EST
Specifications
Gallons Per Minute GPM (L/Sec) | 10 (0.63) |
Grease Capacity Actual (ASME A112.14.3) | 38.07 lb (17.28 kg) |
Average Efficiency% (Ibs) (ASME A112.14.3) | 0.925 |
Operating Temperature Capabilities | 220°F (104°C) |
Cover Load Rating – CSA B481.0 | L |
Unit Weight (Empty) | 15.8 lb (7,17 kg) |
Liquid Capacity | 12.96 gal (49.06 L) |
Connection size (mechanical joint only) | 2″ |
Product Overview:
Using our most compact tank platform, the Endura10 uses a unique flow path to separate fats, oils, and grease. Installed in low flow applications such as food trucks, concession stands, and small kitchens, this model provides effective separation in a compact footprint. NSF Certified to CSA B 481.1, ASME A112.14.3 & PDI G101.
Features:
Using our most compact tank platform, the Endura10 uses a unique flow path to separate fats, oils, and grease. Installed in low flow applications such as food trucks, concession stands, and small kitchens, this model provides effective separation in a compact footprint. NSF Certified to CSA B 481.1, ASME A112.14.3 & PDI G101.
Features:
- Tank, lid and baffles injection molded in high performance engineered thermoplastic that will not corrode, chip, or peel, even under the most severe applications.
- Compact footprint compared to traditional solutions.
- Supplied with accessible flow control device (HxHxH) for solvent weld installation to ABS and PVC DWV systems.
- Maximum service temperature rated at 220 Deg F/104 Deg C continuous discharge.
- Lightweight but highly durable construction offers ease of handling, installation and product longevity compared to traditional interceptors.
- EZ-Open cover latching system provides simple fastener free solution for regular maintenance access.
- Tank and flow control installed using mechanical joint couplings (by others), allowing for connection with various piping materials.
- 2" No-Hub connection compatible with DWV piping.
- Cover exceeds CSA B481.0 Class L - Proof load min. 600lb (270kg). Expected service load Max 300lb (135kg).
- Recessed silicone seal prevents foul odors from escaping in service.
