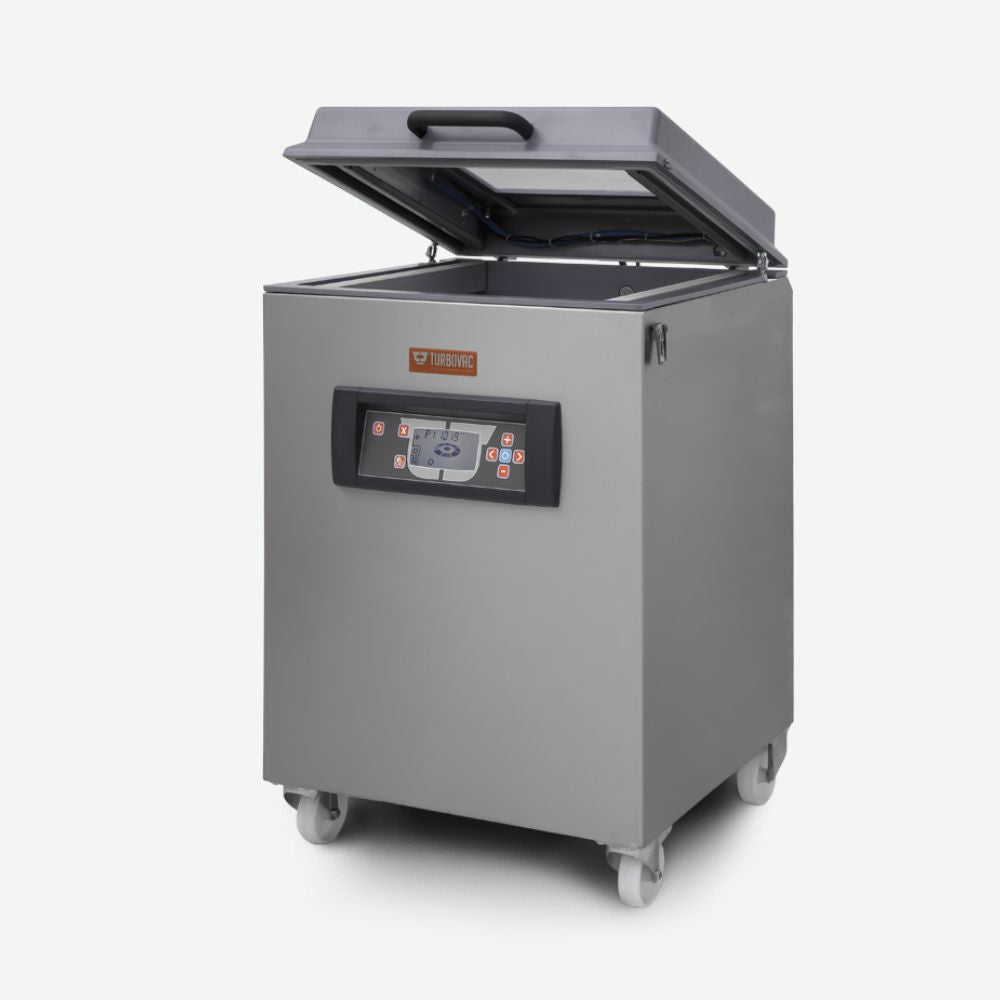

Turbovac Heavy Duty Vac Pack Machine with 19.5" Seal Bar & Aluminum Cover
ITEM#: OM50003
Product Overview
Turbovac Vacuum Packaging Machines
Our Turbovac vacuum packaging machines have been redesigned to make the machines easier to use and maintain. The full range of machines and available options makes it easy to select the best solution for your packaging needs.
All models have hygienic easy-to-clean vacuum chambers, easily removable seal beams, and silicon bars for easy cleaning. The intuitive digital control unit detects automatically the optimum vacuum level for products with high moisture content, preventing moisture to be evaporated out of the product.
New Digital Control Unit with LCD
For our new line of machines, the control unit is completely redesigned. Simplicity was the Point
Our smaller machines have a control unit with the basic settings. The plug-and-play design of the machines makes installation easy and does not require any adjustments in 90% of the situations. For special packaging requirements, the machine offers the flexibility to adjust sealing time and vacuum time. The vacuum time can be set and the vacuum level reached can be monitored with the vacuum meter.
The professional machines are standard equipped with a digital LCD control unit with 10 programs. The more advanced machines are equipped with a 10-program sensor control system that actually measures the vacuum in the vacuum chamber. The time-controlled machines can easily be converted into sensor-controlled machines later on. The sensor measures evaporation when moist products or liquids, like sauces, are packed. At this optimum point, moisture is extracted from the product causing it to dry out, lose weight or start bubbling and spilling over. The sensor detects this point immediately as being the optimum level where all air and oxygen have been removed and continues the cycle by sealing the package.
The digital LCD control unit allows all settings to be easily changed. A unique indication gives the operator the option of letting the pump run for several cycles after finishing the operation. This will extend the periods between oil changes and extend the life time of the pump by removing moisture from the oil in the system. The control panel has also a clear indication of an upcoming service intervention.
Sensor Or Time Control
10 program machines can, later on, be converted into a sensor-controlled machine.
With a time-controlled vacuum machine a time is set and the vacuum level can be monitored with an analog vacuum meter. Excellent vacuum levels can be reached but the indication of the vacuum meter is less accurate than a digitally controlled unit.
With a sensor-controlled machine, the vacuum is measured with a sensor with very high accuracy and the results are digitally displayed. This results in shorter cycle times because when the desired vacuum level is reached the machine will immediately start the next operation. The total cycle time will be shorter than with a time-controlled machine. The 10 program time controlled machine can, later on, be equipped with a sensor. (not possible for the 1 program time-controlled machine)
Specifications:
- Seal Length: 19.68” / (500mm)
- 10 Programable Control: Yes
- Busch Vacuum Pump: 40 m³
- Maximum Product Height: 6.89”
- Useful Chamber Size (DWH): 19.68” x 19.68”
- Power: 4.43 HP / 3.3 kW
- Electrical: 220/60Hz/3Ph
- Dimensions: (DWH): 26.77” x 27.36” x 40.75”
- Weight: 330 lbs.
