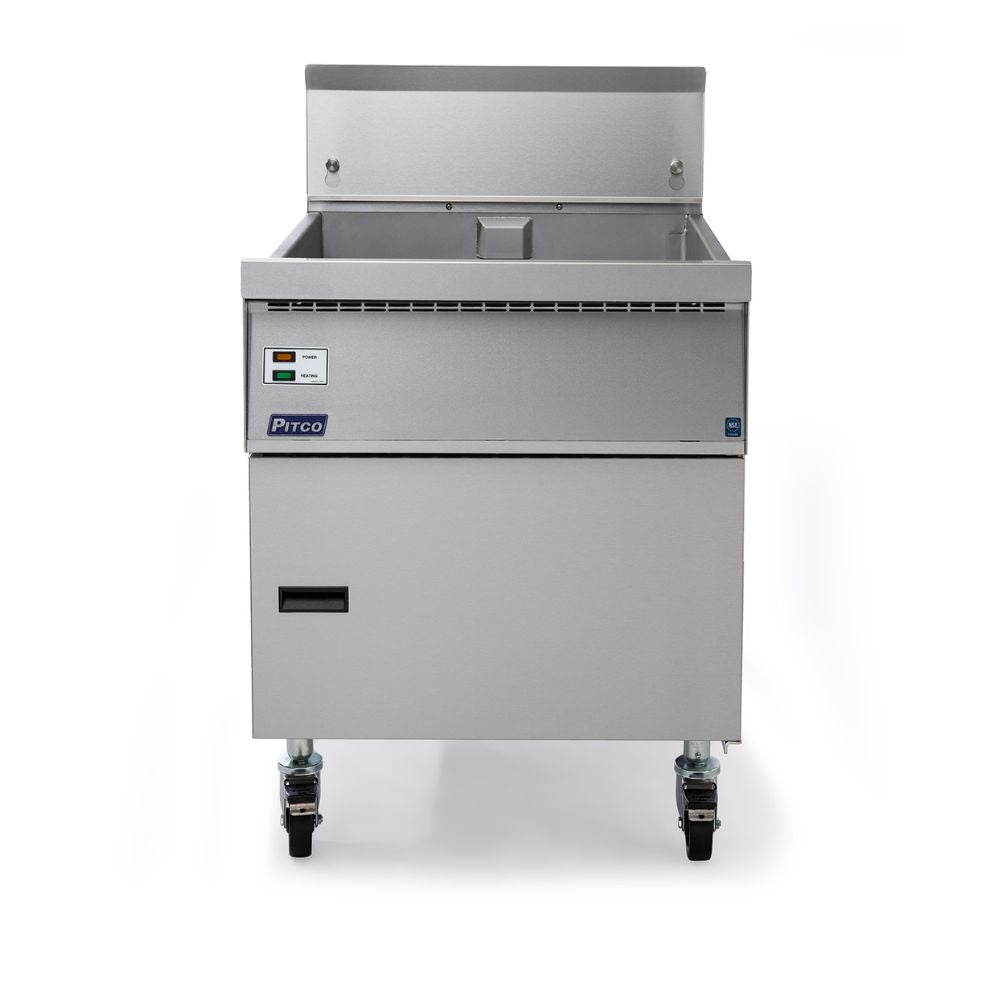

Pitco 57 - 87 lb Flat Bottom Floor Fryer Natural Gas 120,000 BTU

ITEM#: FBG24

Product Overview:

Pitco Frialator’s FBG series commercial gas fryer system combines flexibility with ease of use in a simple-to-operate, reliable package.

Construction

  • Fry tank constructed of heavy gauge mild steel for stickless wet batter frying.
  • Welded tank with an extra smooth peened finish ensures easy cleaning.
  • Stainless steel cabinet front, door, side and splash back.
  • Heavy duty 3/16” door hinges.
  • Marine front edge to hold wet batter trays.
  • Front 1.25" full port drain for quick draining.
  • 9” bottom clearance allows for ease of cleaning.

Controls

  • Blower Free Burner Technology provides dependable heat transfer without the need for complex power blowers.
  • Integrated gas control valve acts as a manual valve, safety pilot valve, main valve, gas filter, and pressure regulator (MAX ½ PSI SUPPLY).
  • Gas control valve prevents gas flow to the main burner until the pilot is established and shuts off all gas flow automatically if the pilot flame goes out.
  • Temperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit.
  • Solid State Thermostat mounted behind the front door. A temperature controller incorporates an automatic melt cycle, system indicator lights, and a power switch.
  • Matchless ignition ignites a standing pilot once a day when the power is turned on. Less wear and tear on components and faster recovery when the controller calls for heat.
  • A drain valve interlock switch is a hermetically sealed switch that automatically shuts down the heating system if the drain valve is opened

Standard Features

  • Tank - heavy-duty gauge mild steel.
  • Cabinet-stainless steel front, door, sides & splash back.
  • Blower Free Burner Technology.
  • Solid State Temperature Controller with matchless ignition, melt cycle and drain valve interlock switch.
  • 1.25" Full port drain valve.
  • Manual gas shutoff and Rear gas connection.
  • Built-in integrated flue deflector.
  • 9” Legs, (Optional casters shown in image).
  • Drain plug.
  • Removable flue splash guard.
  • Drain Line Cleanout rod.
  • Drain Extension.
  • Fryer cleaner sample

    Retail Price:

    Request a Quote

    Why is the price hidden?

    Shipping Options

    Available for
    Delivery

    Free In-Store Pick Up. T&C Apply. Click Here For Info

    Product Overview:

    Pitco Frialator’s FBG series commercial gas fryer system combines flexibility with ease of use in a simple-to-operate, reliable package.

    Construction

    • Fry tank constructed of heavy gauge mild steel for stickless wet batter frying.
    • Welded tank with an extra smooth peened finish ensures easy cleaning.
    • Stainless steel cabinet front, door, side and splash back.
    • Heavy duty 3/16” door hinges.
    • Marine front edge to hold wet batter trays.
    • Front 1.25" full port drain for quick draining.
    • 9” bottom clearance allows for ease of cleaning.

    Controls

    • Blower Free Burner Technology provides dependable heat transfer without the need for complex power blowers.
    • Integrated gas control valve acts as a manual valve, safety pilot valve, main valve, gas filter, and pressure regulator (MAX ½ PSI SUPPLY).
    • Gas control valve prevents gas flow to the main burner until the pilot is established and shuts off all gas flow automatically if the pilot flame goes out.
    • Temperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit.
    • Solid State Thermostat mounted behind the front door. A temperature controller incorporates an automatic melt cycle, system indicator lights, and a power switch.
    • Matchless ignition ignites a standing pilot once a day when the power is turned on. Less wear and tear on components and faster recovery when the controller calls for heat.
    • A drain valve interlock switch is a hermetically sealed switch that automatically shuts down the heating system if the drain valve is opened

    Standard Features

    • Tank - heavy-duty gauge mild steel.
    • Cabinet-stainless steel front, door, sides & splash back.
    • Blower Free Burner Technology.
    • Solid State Temperature Controller with matchless ignition, melt cycle and drain valve interlock switch.
    • 1.25" Full port drain valve.
    • Manual gas shutoff and Rear gas connection.
    • Built-in integrated flue deflector.
    • 9” Legs, (Optional casters shown in image).
    • Drain plug.
    • Removable flue splash guard.
    • Drain Line Cleanout rod.
    • Drain Extension.
    • Fryer cleaner sample
