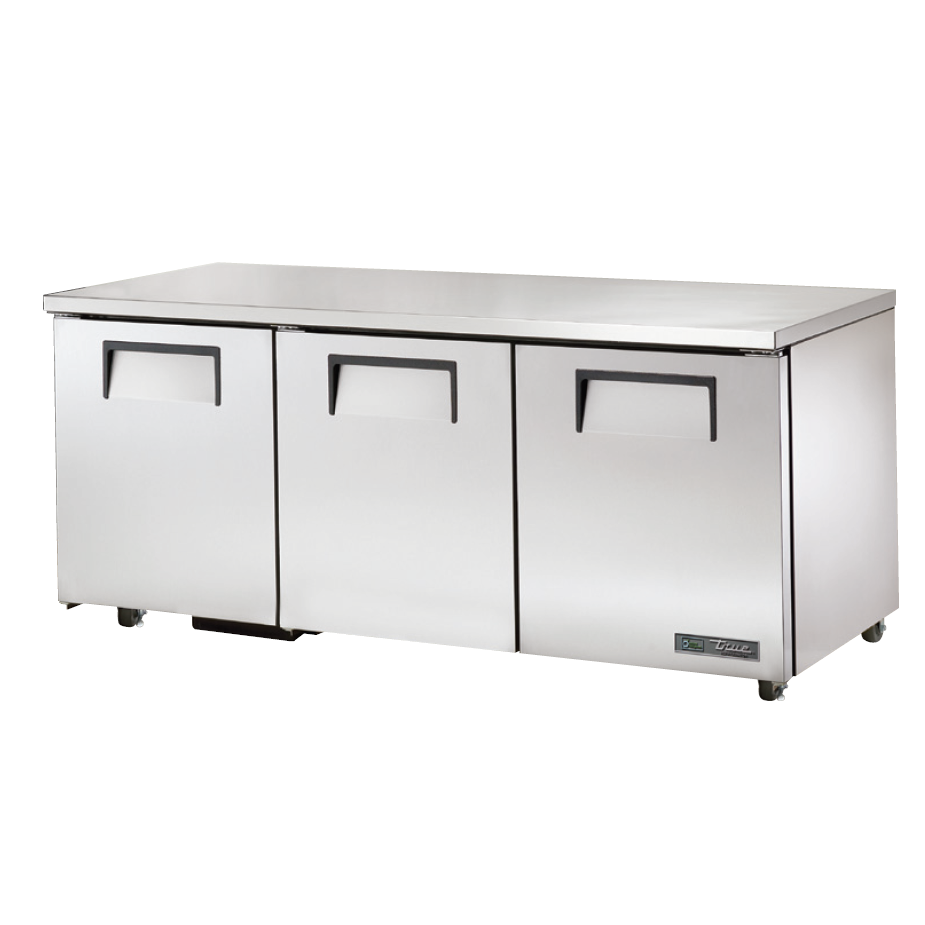

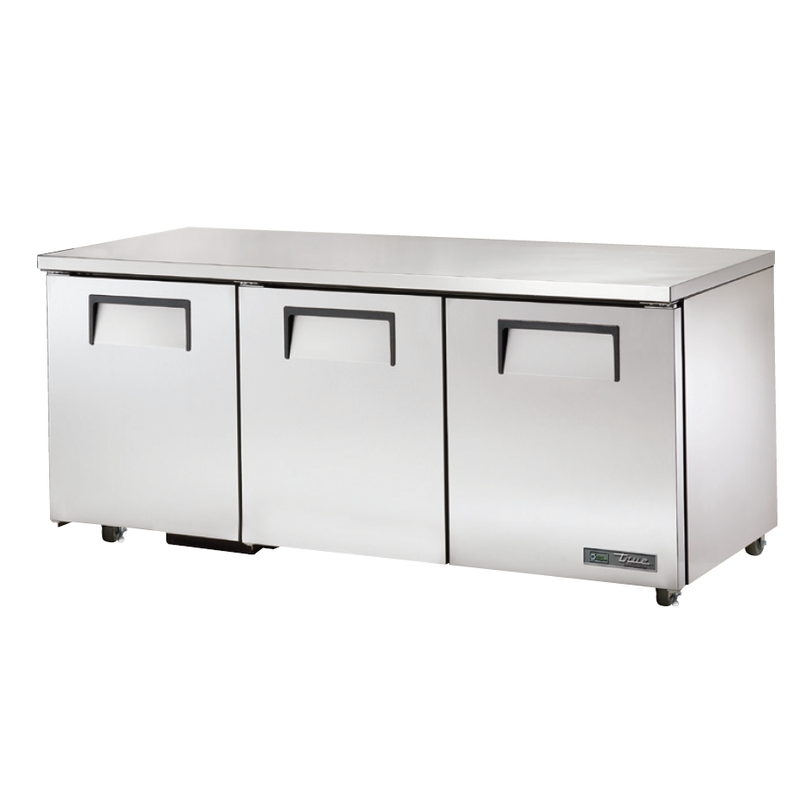

True 72" Undercounter Refrigerator with 3 Solid Doors, ADA Compliant - TUC-72-ADA

ITEM#: TUC-72-ADA MFR#: TUC-72-HC

Product Overview

True's TUC-72-ADA Undercounter Refrigerator with 3 Solid Doors, ADA Compliant is designed with enduring quality that protects your long-term investment. True’s commitment to using the highest quality materials and oversized refrigeration systems ensures colder product temperatures, lower utility costs, exceptional food safety, and the best value in today’s food service marketplace.

Refrigeration System

  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero (0) ozone depletion potential (ODP) and three (3) global warming potential (GWP).
  • Energy-efficient, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (0.5°C to 3.3°C) for optimal food preservation.
  • State-of-the-art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies, moving a more consistent volume of air, reducing heat generation, energy consumption, and enhancing motor reliability.
  • Condensing unit access located in the back of the cabinet, which slides out for easy maintenance.

Cabinet Construction

  • Exterior: Stainless steel front, top, and ends with corrosion-resistant GalFan coated steel back.
  • Interior: Attractive, NSF-approved, clear-coated aluminum liner with a stainless steel floor and coved corners.
  • Insulation: The entire cabinet structure and solid doors are foamed-in-place with high-density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • 3" (77 mm) diameter stem castors allow for easy placement, with a 34" (864 mm) work surface height compliant with American Disabilities Act (ADA) requirements.

Doors

  • Stainless steel exterior with a clear aluminum liner to match the cabinet interior.
  • Each door features a 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock for permanent attachment.
  • Positive seal self-closing doors with a 90° stay-open feature; doors swing within cabinet dimensions.
  • Magnetic door gaskets are one-piece construction, removable without tools for easy cleaning.

Shelving

  • Six (6) adjustable, heavy duty PVC coated wire shelves:
  • Left Top: 21.56"L x 23.68"D (548 mm x 602 mm)
  • Left Bottom: 13.75"D (350 mm)
  • Right Top: 21.56"L x 21.25"D (548 mm x 540 mm)
  • Right Bottom: 13.75"D (350 mm)
  • Center Top: 23.5"L x 21.25"D (597 mm x 540 mm)
  • Center Bottom: 13.75"D (350 mm)
  • Four (4) chrome-plated shelf clips are included per shelf.
  • Shelf support pilasters are made of the same material as the cabinet interior; shelves are adjustable on 0.5" (13 mm) increments.

Model Features

  • The evaporator is epoxy-coated to eliminate potential corrosion.
  • NSF/ANSI Standard 7 compliant for open food products.

Electrical

  • Unit is completely pre-wired at the factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

Retail Price:

$4,747.42 / Each

If ordered today estimated lead time 2024/11/17

Order now to reserve the item

Specifications

Exteriror Width72.38 Inches
Exterior Depth30.13 Inches
Exterior Height29.75 Inches
Door StyleSwing
Door TypeSolid
Number of Doors3.0
Number of Shelves6.0
CastersYes (Add 3" to Height)
ConstructionStainless Steel
Amps4 Amps
Hertz60 Hertz
Phase1 Phase
Voltage115 Volts
Made InUSA
Warranty7 Years Parts & Labor, 7 Years Compressor Parts

Spec Sheet

Shipping Options

Available for
Delivery

Free In-Store Pick Up. T&C Apply. Click Here For Info

Product Overview

True's TUC-72-ADA Undercounter Refrigerator with 3 Solid Doors, ADA Compliant is designed with enduring quality that protects your long-term investment. True’s commitment to using the highest quality materials and oversized refrigeration systems ensures colder product temperatures, lower utility costs, exceptional food safety, and the best value in today’s food service marketplace.

Refrigeration System

  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero (0) ozone depletion potential (ODP) and three (3) global warming potential (GWP).
  • Energy-efficient, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (0.5°C to 3.3°C) for optimal food preservation.
  • State-of-the-art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies, moving a more consistent volume of air, reducing heat generation, energy consumption, and enhancing motor reliability.
  • Condensing unit access located in the back of the cabinet, which slides out for easy maintenance.

Cabinet Construction

  • Exterior: Stainless steel front, top, and ends with corrosion-resistant GalFan coated steel back.
  • Interior: Attractive, NSF-approved, clear-coated aluminum liner with a stainless steel floor and coved corners.
  • Insulation: The entire cabinet structure and solid doors are foamed-in-place with high-density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • 3" (77 mm) diameter stem castors allow for easy placement, with a 34" (864 mm) work surface height compliant with American Disabilities Act (ADA) requirements.

Doors

  • Stainless steel exterior with a clear aluminum liner to match the cabinet interior.
  • Each door features a 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock for permanent attachment.
  • Positive seal self-closing doors with a 90° stay-open feature; doors swing within cabinet dimensions.
  • Magnetic door gaskets are one-piece construction, removable without tools for easy cleaning.

Shelving

  • Six (6) adjustable, heavy duty PVC coated wire shelves:
  • Left Top: 21.56"L x 23.68"D (548 mm x 602 mm)
  • Left Bottom: 13.75"D (350 mm)
  • Right Top: 21.56"L x 21.25"D (548 mm x 540 mm)
  • Right Bottom: 13.75"D (350 mm)
  • Center Top: 23.5"L x 21.25"D (597 mm x 540 mm)
  • Center Bottom: 13.75"D (350 mm)
  • Four (4) chrome-plated shelf clips are included per shelf.
  • Shelf support pilasters are made of the same material as the cabinet interior; shelves are adjustable on 0.5" (13 mm) increments.

Model Features

  • The evaporator is epoxy-coated to eliminate potential corrosion.
  • NSF/ANSI Standard 7 compliant for open food products.

Electrical

  • Unit is completely pre-wired at the factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

Spec Sheet
