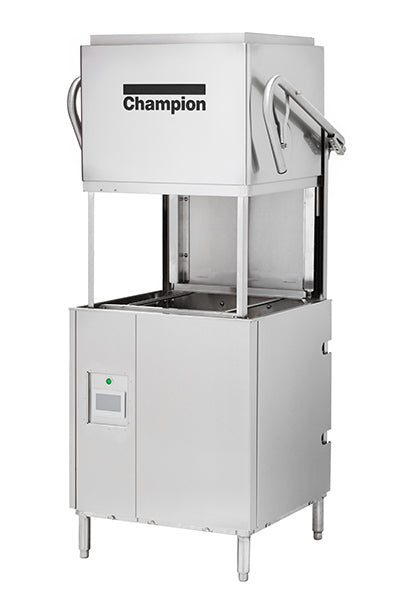

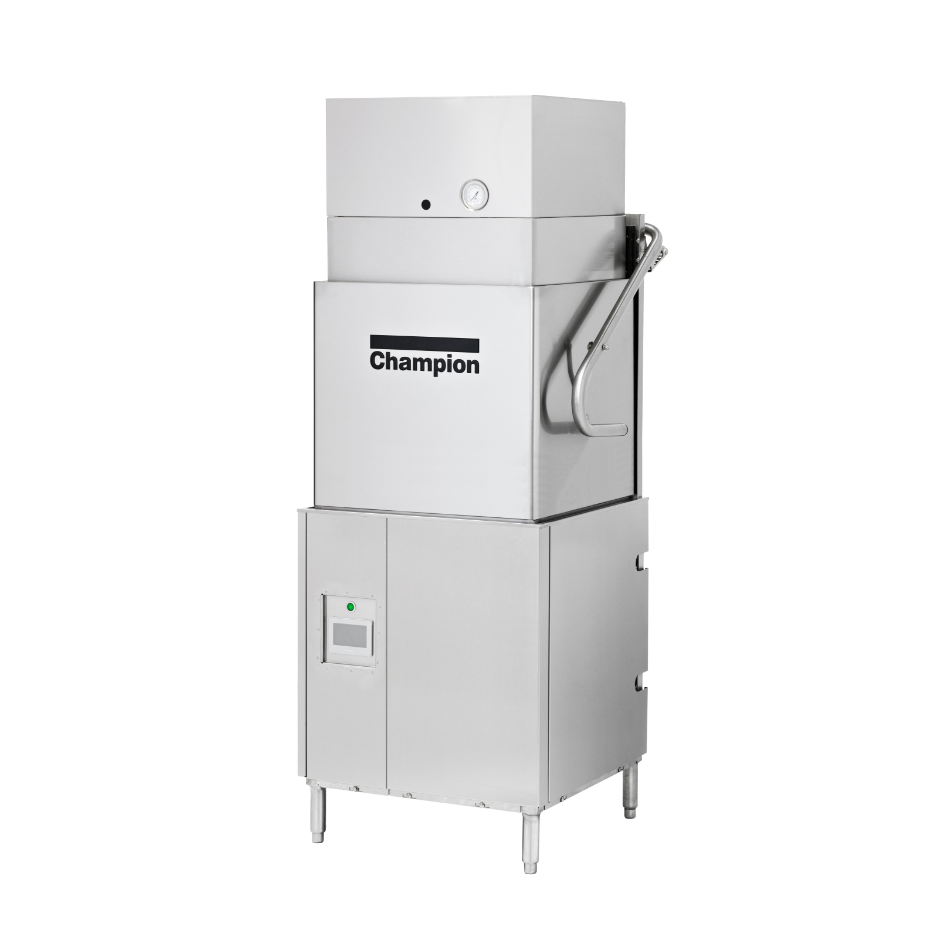

Champion Door Type High Temperature Dishwasher with Booster & Ventless Heat Recovery, 40 Racks /Hour
ITEM#: DH-6000-VHR
Product Overview
The Champion Door-Type High Temperature Dishwasher with Booster & Ventless Heat Recovery delivers powerful sanitizing performance with unmatched energy efficiency. Featuring a built-in booster heater, ventless heat recovery system, and smart touchscreen interface, this dishwasher provides superior cleaning results while significantly reducing water, energy, and ventilation costs.
-
Ventless Heat Recovery System: Captures exhaust heat and steam to preheat rinse water, reducing energy use and eliminating the need for external venting.
-
Built-In Booster Heater: Ensures a consistent 180°F final rinse, meeting high-temperature sanitization standards.
-
High-Capacity Cleaning: Processes up to 40 racks per hour with just 0.73 gallons of water per rack, ensuring superior cleaning with minimal resource consumption.
-
Advanced HMI Touchscreen Interface: Provides intuitive visual alerts, multilingual operation guidance, and easy access to system functions.
-
On-Board Service Diagnostics: Detects and displays machine faults for fast troubleshooting and minimal downtime.
-
Rinse Sentry Technology: Extends the rinse cycle automatically until the booster reaches sanitizing temperature, guaranteeing proper sanitation every cycle.
-
Programmable Sleep Mode: Shuts off internal heaters after a user-defined idle period to conserve energy during off hours.
-
Door Interlock System: Locks the door during the vent fan cycle to maximize heat recovery and minimize steam in the dishroom.
- Automated Delime Function: Cleans the interior with a customizable alert schedule based on water quality and usage.
-
Dual NSF Certification: Meets NSF standards as both a stationary rack dishwasher and pot/pan washer, offering versatile cleaning performance.
-
High-Efficiency Pump System: Equipped with a 2 HP wash pump for strong water pressure and efficient cleaning results.
-
Automatic Drain Valve: Heavy-duty, gear-driven stainless and brass valve automatically drains the wash tank when power is off.
-
Vent Fan, Detergent, and Rinse Aid Signals: Pre-configured for seamless connection to accessory systems.
-
Four Wash Cycles: Users can select 1-, 2-, 4-, or 6-minute wash cycles based on soil level or load type.
- Cycle Counter: Tracks total cycles since installation for maintenance planning and performance tracking.
Note: Voltage must be specified when placing the order to ensure correct configuration and installation.
Ideal for restaurants, hotels, and institutional kitchens, this dishwasher provides cleaner dishes, a cooler workspace, and long-term operational savings all backed by Champion’s industry-leading quality and reliability.
Retail Price:
Request a Quote
Why is the price hidden?

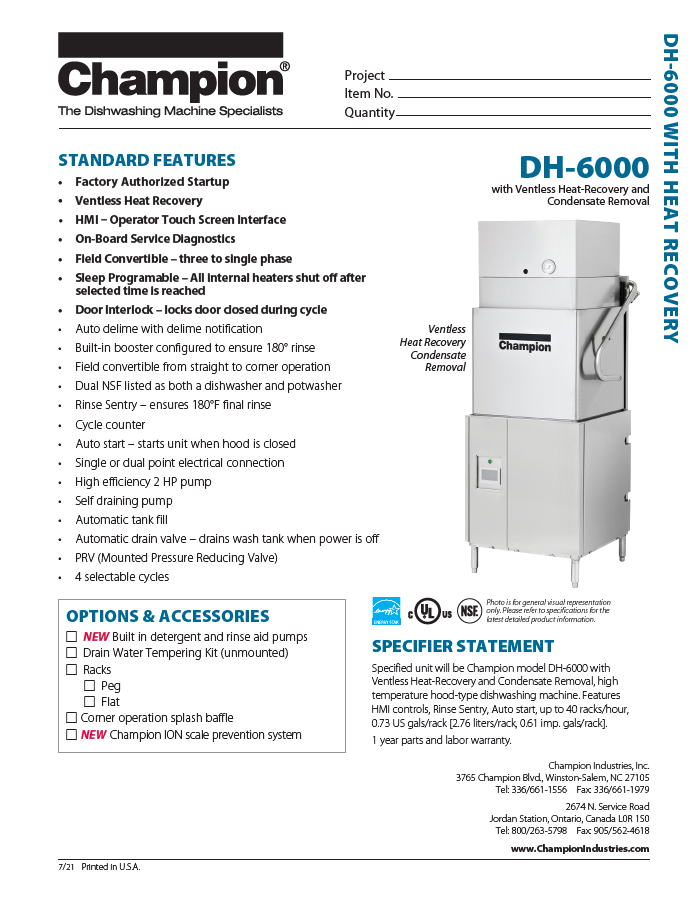

Specifications
Item Number | DH-6000-VHR |
Exterior Width | 34 Inches |
Exterior Depth | 31.65 Inches |
Exterior Height | 69 Inches |
Number of Racks | 40 Racks / Hour |
Wash Tank Capacity | 10 Gallon |
Motor Horsepower | 2 HP |
Gallon Per Rack | 0.73 Gallon Per rack |
High or Low Temp | High Temp |
Amps | 48-50 Amps |
Voltage | 208 Volts |
Hertz | 60 Hz |
Phase | 3 Phase |
