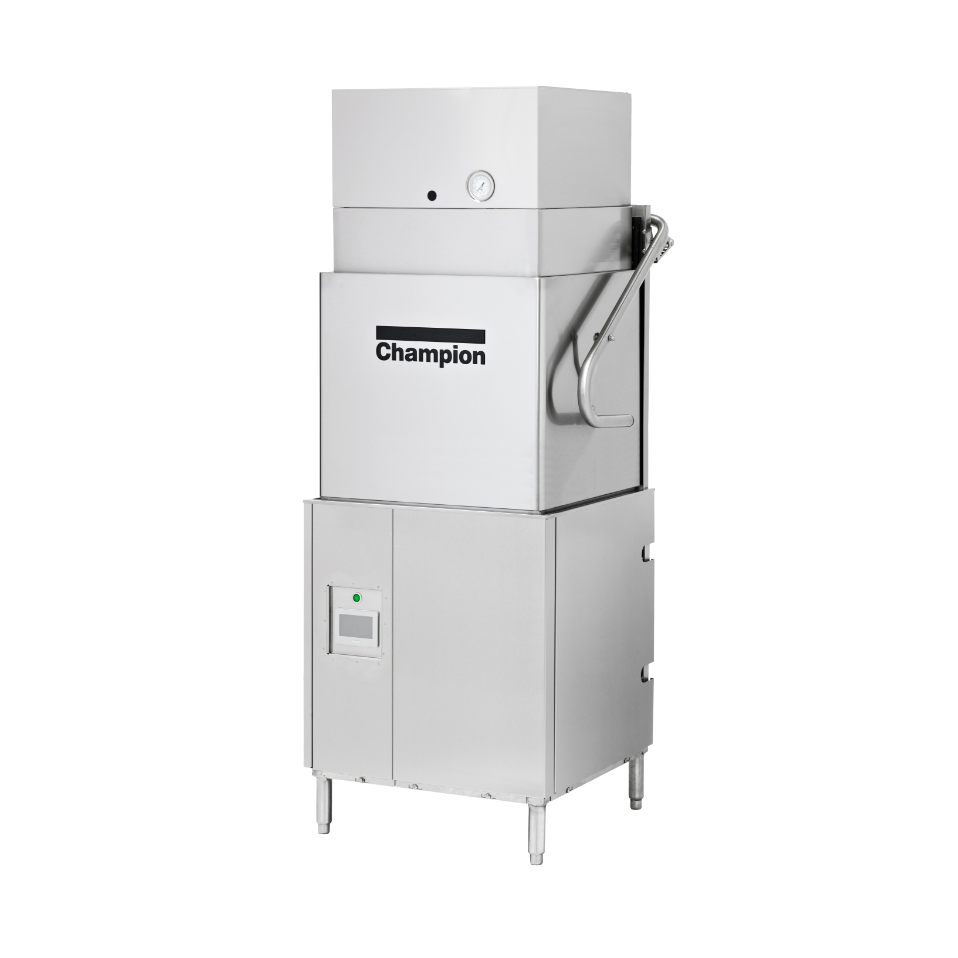

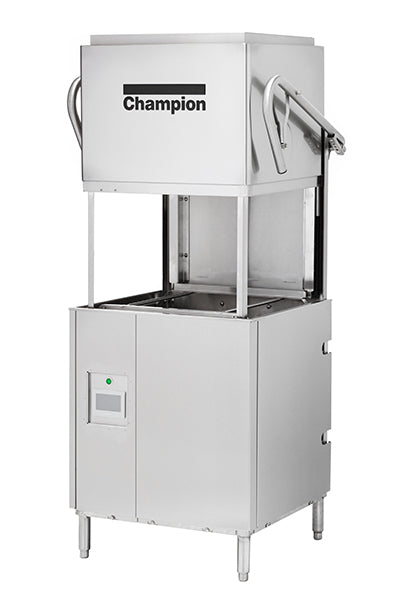

Champion Door Type High Temperature Dishwasher with Tall Hood, Booster & Ventless Heat Recovery, 40 Racks /Hour

ITEM#: DH-6000T-VHR

Product Overview

The Champion Tall Hood High Temperature Dishwasher with Ventless Heat Recovery delivers unmatched efficiency, performance, and versatility for modern commercial kitchens. Combining ventless heat recovery technology, a built-in booster heater, and a 27-inch tall hood design, this dishwasher provides powerful sanitizing performance while saving on energy, water, and ventilation costs.

Key Features
  • Ventless Heat Recovery System: Captures and reuses heat from steam to preheat rinse water, reducing energy consumption and eliminating the need for an external vent hood.
  • Built-In Booster Heater: Factory-configured booster ensures a consistent 180°F final rinse for high-temperature sanitizing compliance.
  • High-Capacity Cleaning: Handles up to 40 racks per hour, ideal for medium to high-volume commercial operations.
  • Tall Hood Design: 27" (686 mm) clearance accommodates sheet pans, mixing bowls, and large cookware with ease.
  • HMI Touch-Screen Interface: Advanced digital display simplifies operation, cycle selection, and system monitoring.
  • On-Board Service Diagnostics: Built-in diagnostics and alerts make troubleshooting quick and straightforward.
  • Dual NSF Certification: Certified as both a dishwasher and a potwasher, offering flexible cleaning for multiple ware types.
  • Door Interlock System: Prevents the door from opening during the vent fan cycle, enhancing operator safety and preventing heat loss.
  • Auto Delime Function: Automatically removes scale buildup, with a delime notification system to ensure timely maintenance.
  • Programmable Sleep Mode: All internal heaters shut off after a set idle time, conserving energy when not in use.
  • High-Efficiency Wash Pump: Robust 2 HP pump provides strong wash pressure, while the self-draining design ensures clean rinse transitions.
  • Automatic Tank Fill & Drain: Automatically fills during startup and drains when power is off for safe, easy operation.
  • Pressure Reducing Valve (PRV): Factory-mounted PRV maintains optimal water pressure for consistent rinsing performance.
  • Four Selectable Cycles: Operators can choose from 4 timed wash cycles to handle varying soil levels efficiently.

Note: Voltage must be specified when placing the order to ensure proper configuration and installation.

With ventless energy recovery, a built-in 180°F booster heater, and a user-friendly HMI control interface, it delivers exceptional sanitation and reduced operating costs all without the need for external ventilation.

Retail Price:

Request a Quote

Why is the price hidden?

Specifications

Item Number DH-6000T-VHR
Exterior Width34 Inches
Exterior Depth31.65 Inches
Exterior Height69 Inches
Number of Racks40 Racks / Hour
Wash Tank Capacity10 Gallon
Motor Horsepower2 HP
Gallon Per Rack0.73 Gallon Per rack
High or Low TempHigh Temp
Amps48-50 Amps
Voltage208 Volts
Hertz60 Hz
Phase3 Phase

Shipping Options

Available for <br/>Delivery

Available for
Delivery

Free In-Store Pick Up. T&C Apply. <a href="https://nellacutlery.myshopify.com/pages/shipping-pick-up">Click Here</a> For Info

Free In-Store Pick Up. T&C Apply. Click Here For Info

Product Overview

The Champion Tall Hood High Temperature Dishwasher with Ventless Heat Recovery delivers unmatched efficiency, performance, and versatility for modern commercial kitchens. Combining ventless heat recovery technology, a built-in booster heater, and a 27-inch tall hood design, this dishwasher provides powerful sanitizing performance while saving on energy, water, and ventilation costs.

Key Features
  • Ventless Heat Recovery System: Captures and reuses heat from steam to preheat rinse water, reducing energy consumption and eliminating the need for an external vent hood.
  • Built-In Booster Heater: Factory-configured booster ensures a consistent 180°F final rinse for high-temperature sanitizing compliance.
  • High-Capacity Cleaning: Handles up to 40 racks per hour, ideal for medium to high-volume commercial operations.
  • Tall Hood Design: 27" (686 mm) clearance accommodates sheet pans, mixing bowls, and large cookware with ease.
  • HMI Touch-Screen Interface: Advanced digital display simplifies operation, cycle selection, and system monitoring.
  • On-Board Service Diagnostics: Built-in diagnostics and alerts make troubleshooting quick and straightforward.
  • Dual NSF Certification: Certified as both a dishwasher and a potwasher, offering flexible cleaning for multiple ware types.
  • Door Interlock System: Prevents the door from opening during the vent fan cycle, enhancing operator safety and preventing heat loss.
  • Auto Delime Function: Automatically removes scale buildup, with a delime notification system to ensure timely maintenance.
  • Programmable Sleep Mode: All internal heaters shut off after a set idle time, conserving energy when not in use.
  • High-Efficiency Wash Pump: Robust 2 HP pump provides strong wash pressure, while the self-draining design ensures clean rinse transitions.
  • Automatic Tank Fill & Drain: Automatically fills during startup and drains when power is off for safe, easy operation.
  • Pressure Reducing Valve (PRV): Factory-mounted PRV maintains optimal water pressure for consistent rinsing performance.
  • Four Selectable Cycles: Operators can choose from 4 timed wash cycles to handle varying soil levels efficiently.

Note: Voltage must be specified when placing the order to ensure proper configuration and installation.

With ventless energy recovery, a built-in 180°F booster heater, and a user-friendly HMI control interface, it delivers exceptional sanitation and reduced operating costs all without the need for external ventilation.
