Dormont ReliaGuard Gas Connector Kit, 1" x 48"
ITEM#: CANRG10048
Product Overview
The ReliaGuard® with Standard Snap™ Quick-Disconnect Assembly is a moveable-grade, braided, gray PVC–coated, 304 stainless steel commercial gas connector designed for use with moveable equipment and caster-mounted equipment that is moved on a regular basis for cleaning and repair. The quick disconnect allows for easy connection and disconnection of the gas hose to the appliance to allow for maximum appliance movement.
Moveable equipment is defined in ANSI Standard Z21.69/CSA 6.16 as gas utilization
equipment that may be mounted on casters or otherwise be subject to movement.
Features:
Standard Snap Quick-Disconnect
- Quick-Disconnect: Brass body, aluminum collar
Additional Components
- Restraining Device: PVC coated, steel multi-strand cable and mounting hardware
- Valve: Full port, brass body
- Elbow: Malleable iron

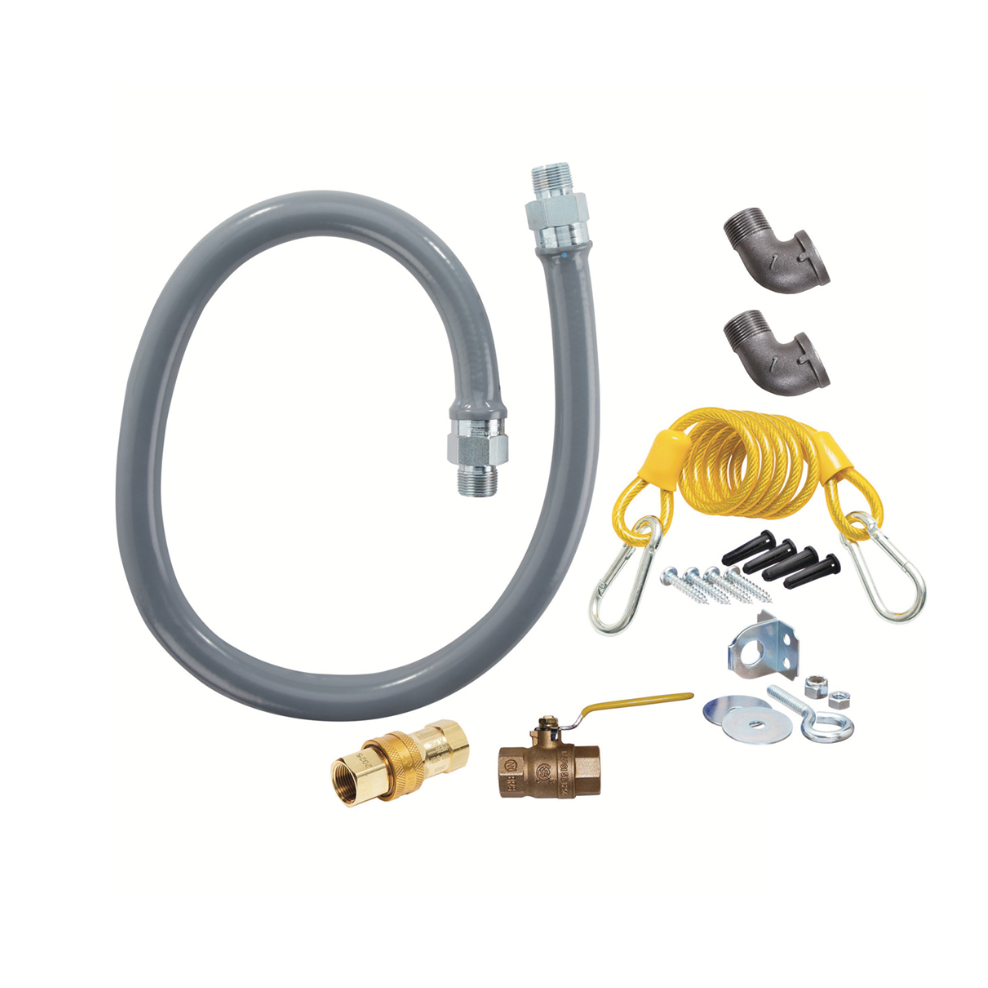

- Kits Include: ReliaGuard gas hose, Standard Snap QD, full port ball valve, restraining device and 90 degree street elbows
Specifications:
The ReliaGuard®
- Tubing: Annealed, corrugated 304 stainless steel
- Braiding: Multi-strand, stainless steel wire
- Coating: Gray PVC, melts at 350ºF (177ºC); coating will not hold a flame
- End Fittings: Carbon steel; zinc trivalent chromate 360º rotational end fitting at both ends
