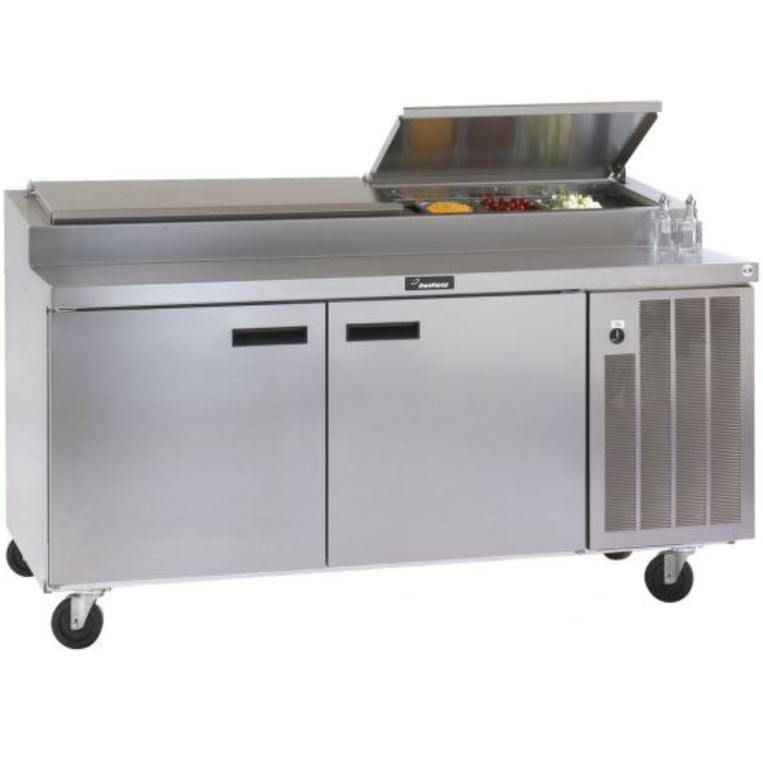

Garland Delfield 72" Refrigerated Pizza Prep Table with 2 Solid Doors

ITEM#: 18672PTBMP

Exterior Top:

Constructed of one-piece 18-gauge stainless steel, with integral 2.12" (5cm) high square nosing at the front. Top has a mechanically cooled refrigerated raised rail at the rear with openings to accommodate pans (provided by others). Rail interior is 22-gauge stainless steel. Raised rail openings have 18-gauge stainless steel removable lids. Unit is equipped with separate expansion valve and on/off switch for refrigerated rail. Temperature in top openings maintains 33°F (1°C) to 41°F (5°C) with pans recessed 2" (5cm) at 86°F ambient room temperature, meeting NSF 7 requirements.


Exterior Back and Bottom:

24-gauge galvanized steel. Exterior ends are finished with stainless steel.



Base Interior:

Stainless steel back and bottom. Base interior sides and door frames are thermoformed ABS plastic. Each interior door section has (1) 25" (64cm) deep removable epoxy coated wire shelf. Base is insulated with 2" (5cm) high density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. End of base has a machine compartment with condensing unit installed.


Door(s):

22-gauge stainless steel exterior front, with a thermoformed ABS plastic interior liner.


Refrigeration System:

R290 refrigerant, and maintains 36˚F (2˚C) to 40˚F (4˚C) interior cabinet temperature. Interior cabinet is cooled with mullion style blower coils (coated) with expansion valves mounted between each door/drawer section for even air and temperature control.



Electronic temperature controls and pre-wired condensing unit with hot gas condensate evaporator are installed in the machine compartment. Electronic control for base reads air temperature. Electronic control for rail displays temperature for set point purposes only. Display does not reflect air or product temps in unit. On/Off switches for rail and base are located behind the louvered panel.

Electrical Connections:

115 volt, 60 Hertz, single phase. Unit is wired with 3-wire, grounded, maximum 8' (2.4m) cord and plug.


Casters: Equipment is mounted on 5" (13cm) diameter casters; overall height of casters is 6.13" (16cm).

Retail Price:

Request a Quote

Why is the price hidden?

Specifications

Exterior Width72 Inches
Exterior Depth31.5 Inches
Exterior Height42 Inches
Door TypeSolid
Door StyleSwing
Number Of Doors2.0
Sections2.0
Pan Capacity(9) 1/3 Pans
Amps6.5 Amps
Hertz60 Hertz
Phase1 Phase
Voltage115 Volts
CastersYes (Add 5" to Height)
Capacity16.77 cu. Ft
Number of Shelves2.0
ConstructionStainless Steel
Made InUSA
Warranty3 Years Parts & Labor, 5 Years Compressor Parts

Spec Sheet

Shipping Options

Available for
Delivery

Free In-Store Pick Up. T&C Apply. Click Here For Info

Exterior Top:

Constructed of one-piece 18-gauge stainless steel, with integral 2.12" (5cm) high square nosing at the front. Top has a mechanically cooled refrigerated raised rail at the rear with openings to accommodate pans (provided by others). Rail interior is 22-gauge stainless steel. Raised rail openings have 18-gauge stainless steel removable lids. Unit is equipped with separate expansion valve and on/off switch for refrigerated rail. Temperature in top openings maintains 33°F (1°C) to 41°F (5°C) with pans recessed 2" (5cm) at 86°F ambient room temperature, meeting NSF 7 requirements.


Exterior Back and Bottom:

24-gauge galvanized steel. Exterior ends are finished with stainless steel.



Base Interior:

Stainless steel back and bottom. Base interior sides and door frames are thermoformed ABS plastic. Each interior door section has (1) 25" (64cm) deep removable epoxy coated wire shelf. Base is insulated with 2" (5cm) high density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. End of base has a machine compartment with condensing unit installed.


Door(s):

22-gauge stainless steel exterior front, with a thermoformed ABS plastic interior liner.


Refrigeration System:

R290 refrigerant, and maintains 36˚F (2˚C) to 40˚F (4˚C) interior cabinet temperature. Interior cabinet is cooled with mullion style blower coils (coated) with expansion valves mounted between each door/drawer section for even air and temperature control.



Electronic temperature controls and pre-wired condensing unit with hot gas condensate evaporator are installed in the machine compartment. Electronic control for base reads air temperature. Electronic control for rail displays temperature for set point purposes only. Display does not reflect air or product temps in unit. On/Off switches for rail and base are located behind the louvered panel.

Electrical Connections:

115 volt, 60 Hertz, single phase. Unit is wired with 3-wire, grounded, maximum 8' (2.4m) cord and plug.


Casters: Equipment is mounted on 5" (13cm) diameter casters; overall height of casters is 6.13" (16cm).
