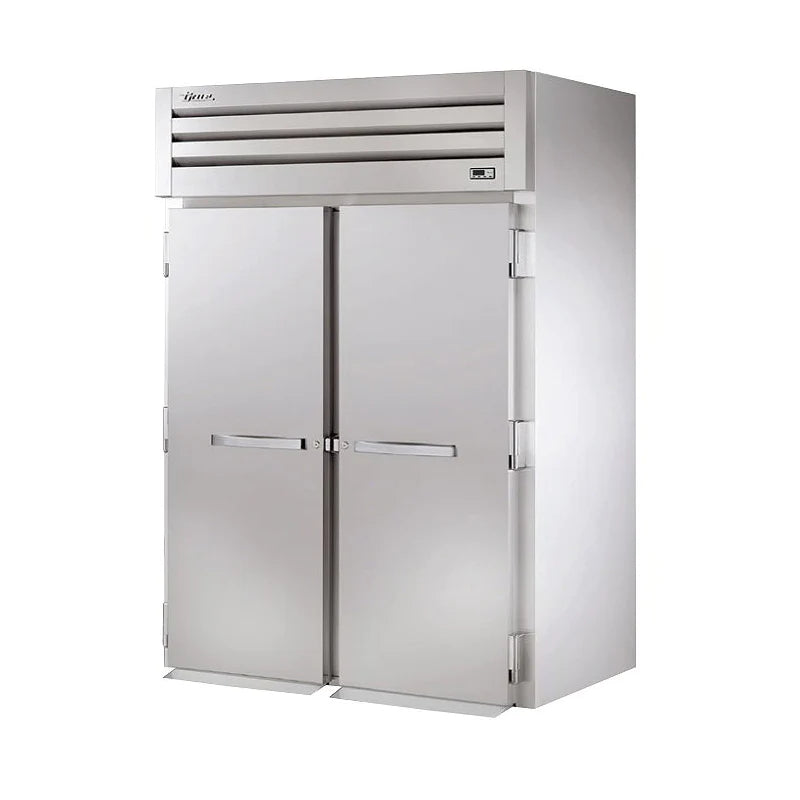

True 68" Roll-In Solid Swing Door Refrigerator Spec Series*

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• Sealed, cast iron, self-lubricating evaporator fan motor(s) and larger fan blades give True roll-in’s a more efficient low velocity, high volume airflow design. This unique design ensures faster temperature recovery and shorter run times in the busiest of foodservice environments.
• Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.

Cabinet Construction

• Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm)
• One (1) heavy gauge stainless steel ramp.

Doors

• Lifetime guaranteed bolt style door locks standard
• Lifetime guaranteed heavy duty all metal working door handle.
• Positive seal self-closing door with 120° stay open feature.
• Lifetime guaranteed external cam lift door hinges, Three (3) per door section.
• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

Lighting

• Interior lighting, safety shielded

Model Features

• Exterior digital temperature display, available with either °F or °C .
• Evaporator epoxy coated to eliminate the potential of corrosion
• Interior bumpers protect cabinet walls from abuse caused by roll-in carts.
• NSF/ANSI Standard 7 compliant for open food product.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included
