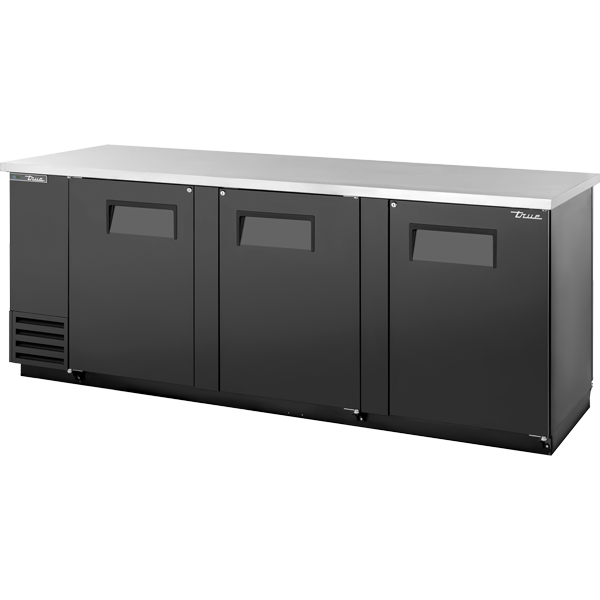

True 90" Back Bar Refrigerator with 3 Solid Doors - TBB-4PT
ITEM#: TBB-4PT
Product Overview
Design:
True TBB-4PT Back Bar Refrigerator with 3 Solid Doors refrigerated back bar coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble-free service.
Refrigeration System:
- Factory-engineered, self-contained capillary tube system using environmentally friendly (CFC free) 134A refrigerant.
- Extra large evaporator coil balanced with a higher horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (0.5°C to 3.3°C).
- Sealed, cast iron, self-lubricating evaporator fan motor(s) and larger fan blades provide efficient low-velocity, high-volume airflow for faster temperature pull-down, colder holding temperatures, and quicker recovery in high-use situations.
- Condensing unit accessed from behind the front grill; slides out for easy cleaning and maintenance.
Cabinet Construction:
- Exterior: Black, powder-coated cold-rolled steel with stainless steel countertop.
- Interior: Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
- The door threshold protector prevents damage from the routine loading of the product.
- Insulation: The entire cabinet structure and solid doors are foamed-in-place with high-density polyurethane insulation (zero ODP, zero GWP).
- Frame: Welded, heavy-duty steel rail, black powder-coated for corrosion protection.
Doors:
- Wear-resistant laminated black vinyl exterior with heavy gauge galvanized steel liner.
- Each door has a 12" (305 mm) long recessed handle, foamed-in-place with a sheet metal interlock for permanent attachment.
- Positive seal doors.
- Magnetic door gaskets (one-piece construction) are removable without tools for easy cleaning.
- Standard door locks.
Shelving:
- Six adjustable, heavy-duty black PVC coated wire shelves: Two right and two left (23 1/2"L x 21 1/4"D or 597 mm x 540 mm), two center (28 1/4"L x 21 1/4"D or 718 mm x 540 mm).
- Four chrome-plated shelf clips per shelf.
- Aluminum shelf support pilasters; shelves adjustable on 1/2" (13 mm) increments.
Lighting:
- Fluorescent interior lighting.
Model Features:
- Epoxy-coated evaporator to prevent corrosion.
- Listed under NSF/ANSI Standard 7 for storing/displaying packaged or bottled products.
Electrical:
- Factory pre-wired for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
Retail Price:
$7,257.62
/ Each
If ordered today estimated lead time 2024/12/04
Order now to reserve the item
Chat with us for more information
Mon-Fri 9:00am - 5:00pm EST
Call us today +1 416-814-6199
Mon-Fri 9:00am - 5:00pm EST
Specifications
| Exterior Width | 90.4 Inches |
| Exteriror Depth | 31 Inches |
| Exterior Height | 37 Inches |
| Door Style | Swing |
| Door Type | Solid |
| Number Of Doors | 3 |
| Number Of Shelves | 6 Shelves |
| Casters | No |
| Construction | Black - Steel |
| Amps | 8.8 Amps |
| Hertz | 60 Hertz |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| Made In | USA |
| Warranty | 7 Years Parts & Labor, 7 Years Compressor Parts |
