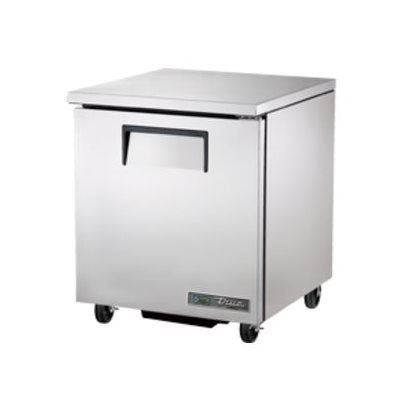

True 27" Undercounter Freezer with 1 Solid Left Hinge Door, ADA Compliant - TUC-27F-LH-ADA
ITEM#: TUC-27F-LH-ADA MFR#: TUC-27F-HC
True’s TUC-27F-LH-ADA Undercounter Freezer with 1 Solid Left Hinge Door, ADA Compliant uses the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today's food service marketplace.
Refrigeration System
- Factory Engineered: Self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential (ODP) and a global warming potential (GWP) of three.
- High Performance: Extra large evaporator coil balanced with a higher horsepower compressor and large condenser maintains -10°F (-23.3°C) cabinet temperatures, ideal for frozen foods and ice cream.
- Efficient Airflow: Sealed, cast iron, self-lubricating evaporator fan motor and larger fan blades provide efficient low velocity, high volume airflow for faster temperature recovery and shorter run times in busy environments.
- Maintenance Access: The condensing unit accessible from the back of the cabinet and slides out for easy maintenance.
- Automatic Defrost: Time-initiated, time-terminated automatic defrost system.
Cabinet Construction
- Exterior: Stainless steel front, top, and ends with a corrosion-resistant GalFan coated steel back.
- Interior: NSF-approved, attractive clear-coated aluminum liner with stainless steel floor and coved corners.
- Insulation: High-density polyurethane insulation foamed-in-place throughout the cabinet structure and solid door, both having zero ODP and GWP.
- Mobility: 3" (77 mm) diameter stem castors; 34" (864 mm) work surface height compliant with ADA requirements.
Door
- Durable Design: Stainless steel exterior with clear aluminum liner matching the cabinet interior.
- Handles: 12" (305 mm) long recessed handle foamed-in-place with sheet metal interlock for permanent attachment.
- Self-Closing Feature: Positive seal self-closing door with a 90° stay-open feature; doors swing within cabinet dimensions.
- Easy Cleaning: One-piece magnetic door gaskets removable without tools for ease of cleaning.
Shelving
- Adjustable Storage: Two (2) adjustable heavy-duty PVC-coated wire shelves measuring 23 1/4"L x 16"D (591 mm x 407 mm); four (4) chrome-plated shelf clips included per shelf.
- Support Pilasters: Made from the same material as the cabinet interior, allowing shelves to be adjustable in 1/2" (13 mm) increments.
Countertop Pan Capacity
- Standard Equipment: Comes with 16 (1/6 size) 6 7/8"L x 6 1/4"W x 4"D (175 mm x 159 mm x 102 mm) clear polycarbonate, NSF-approved food pans in the countertop prep area; accommodates 6" (153 mm) and 8" (204 mm) deep food pans (supplied by others).
- Versatile Design: Countertop pan opening fits varying pan configurations with available pan divider bars; and varying size pans supplied by others.
Model Features
- Corrosion Resistance: Epoxy-coated evaporator to eliminate the potential for corrosion.
- Compliance: NSF/ANSI Standard 7 compliant for open food products.
Electrical
- Pre-wired Unit: Completely pre-wired at the factory for final connection to a 115/60/1 phase, 15 amp dedicated outlet; cord and plug set included.
Retail Price:
If ordered today estimated lead time 2024/10/19
Order now to reserve the item
Chat with us for more information
Mon-Fri 9:00am - 5:00pm EST
Call us today +1 416-814-6199
Mon-Fri 9:00am - 5:00pm EST
Specifications
Exteriror Width | 27.63 Inches |
Exterior Depth | 30.13 Inches |
Exterior Height | 29.75 Inches |
Door Style | Swing |
Door Type | Solid |
Number of Doors | 1.0 |
Number of Shelves | 2.0 |
Casters | Yes (Add 5" to Height) |
Construction | Stainless Steel |
Amps | 2.3 Amps |
Hertz | 60 Hertz |
Phase | 1 Phase |
Voltage | 115 Volts |
Made In | USA |
Warranty | 7 Years Parts & Labor, 7 Years Compressor Parts |
