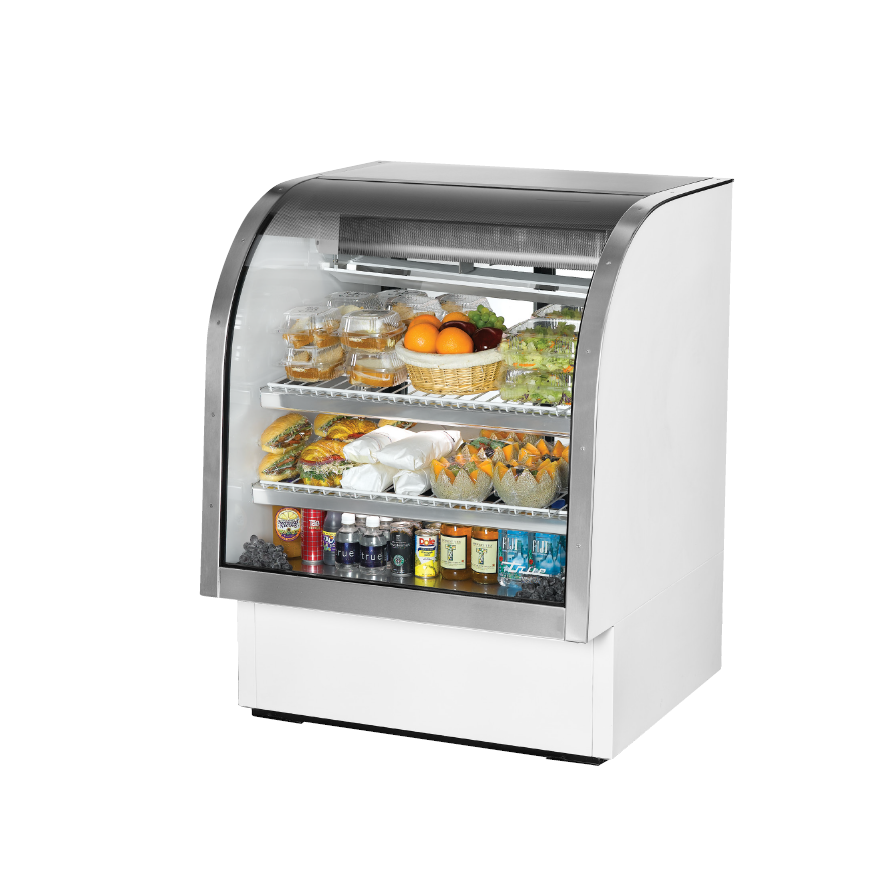

True 36" Refrigerated Deli Display Case with Curved Glass, White Exterior - TCGG-36

ITEM#: TCGG-36 MFR#: TCGG-36-LD

True TCGG-36 Refrigerated Deli Display Case with Curved Glass, White Exterior combines efficient, high-volume merchandising with exceptional refrigeration, all showcased through an elegant curved glass front. This design ensures a sophisticated presentation of deli products, while the gravity coil refrigeration system guarantees the freshest display of meats, cheeses, and other deli items, making it an essential addition to any premium food service environment.

Refrigeration System:

  • Factory-engineered, self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero (0) ozone depletion potential (ODP) and a three (3) global warming potential (GWP).
  • Extra-large evaporator coil balanced with a higher horsepower compressor and large condenser maintains temperatures between 38°F and 40°F (3.3°C to 4.4°C).
  • High humidity gravity coil refrigeration system, ideally suited for deli meats, cheeses, and salads.
  • The condensing unit is located behind a panel in the back of the unit; the entire system slides out for easy cleaning and maintenance.
  • Automatic defrost system; time-initiated and time-terminated.

Cabinet Construction:

  • Exterior: Durable and permanent white powder-coated cold rolled steel with a stainless steel top and trim that resists peeling and chipping.
  • Interior: White aluminum sides and top with a stainless steel floor for easy maintenance and durability.
  • Insulation: The entire cabinet structure is foamed-in-place with high-density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Frame: Welded, heavy-duty steel frame rail, black powder-coated for corrosion protection, and fitted with leg levellers for stability.

Curved Front Display Glass:

  • Insulated double-panel glass provides maximum insulation value for greater efficiency and energy savings. Both panes are tempered for safety.

Rear Doors:

  • “Low-E” double-pane thermal glass inserts with mitered plastic channel frames.
  • Each door is fitted with a 12" (305 mm) long black aluminum handle.
  • Self-closing sliding doors ride on stainless steel V-channel with stainless steel bearings for smooth, even, and positive closure. Doors fit within the plastic channel frame.

Shelving:

  • Two (2) adjustable, lighted, cantilevered white heavy-duty PVC-coated wire shelves, each measuring 30 3/8" L x 22 1/2" D (772 mm x 572 mm).
  • The shelving system features adjustable angles to maximize presentation.

Lighting:

  • Equipped with three (3) LED light sources for optimal product display: two (2) shelf-mounted and one (1) cabinet-mounted.

Model Features:

  • Epoxy-coated evaporator to eliminate the potential for corrosion.
  • Four (4) amp exterior scale receptacles.
  • NSF/ANSI Standard 7 compliant for open food products.

Electrical:

  • Unit is completely pre-wired at the factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.



Retail Price:

$10,012.62 / Each

If ordered today estimated lead time 2024/10/24

Order now to reserve the item

Specifications

Exterior Width36.25 Inches
Exterior Depth35.25 Inches
Exterior Height47.75 Inches
Number of Shelves2.0
Door StyleGlass
Door TypeSliding
Number of Doors2 Doors
Amps3.3 Amps
Hertz60 Hertz
Voltage115 Volts
Phase1 Phase
Made InUSA
Warranty7 Years Parts & Labor, 7 Years Compressor Parts

Spec Sheet

Shipping Options

Available for
Delivery

Free In-Store Pick Up. T&C Apply. Click Here For Info

True TCGG-36 Refrigerated Deli Display Case with Curved Glass, White Exterior combines efficient, high-volume merchandising with exceptional refrigeration, all showcased through an elegant curved glass front. This design ensures a sophisticated presentation of deli products, while the gravity coil refrigeration system guarantees the freshest display of meats, cheeses, and other deli items, making it an essential addition to any premium food service environment.

Refrigeration System:

  • Factory-engineered, self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero (0) ozone depletion potential (ODP) and a three (3) global warming potential (GWP).
  • Extra-large evaporator coil balanced with a higher horsepower compressor and large condenser maintains temperatures between 38°F and 40°F (3.3°C to 4.4°C).
  • High humidity gravity coil refrigeration system, ideally suited for deli meats, cheeses, and salads.
  • The condensing unit is located behind a panel in the back of the unit; the entire system slides out for easy cleaning and maintenance.
  • Automatic defrost system; time-initiated and time-terminated.

Cabinet Construction:

  • Exterior: Durable and permanent white powder-coated cold rolled steel with a stainless steel top and trim that resists peeling and chipping.
  • Interior: White aluminum sides and top with a stainless steel floor for easy maintenance and durability.
  • Insulation: The entire cabinet structure is foamed-in-place with high-density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Frame: Welded, heavy-duty steel frame rail, black powder-coated for corrosion protection, and fitted with leg levellers for stability.

Curved Front Display Glass:

  • Insulated double-panel glass provides maximum insulation value for greater efficiency and energy savings. Both panes are tempered for safety.

Rear Doors:

  • “Low-E” double-pane thermal glass inserts with mitered plastic channel frames.
  • Each door is fitted with a 12" (305 mm) long black aluminum handle.
  • Self-closing sliding doors ride on stainless steel V-channel with stainless steel bearings for smooth, even, and positive closure. Doors fit within the plastic channel frame.

Shelving:

  • Two (2) adjustable, lighted, cantilevered white heavy-duty PVC-coated wire shelves, each measuring 30 3/8" L x 22 1/2" D (772 mm x 572 mm).
  • The shelving system features adjustable angles to maximize presentation.

Lighting:

  • Equipped with three (3) LED light sources for optimal product display: two (2) shelf-mounted and one (1) cabinet-mounted.

Model Features:

  • Epoxy-coated evaporator to eliminate the potential for corrosion.
  • Four (4) amp exterior scale receptacles.
  • NSF/ANSI Standard 7 compliant for open food products.

Electrical:

  • Unit is completely pre-wired at the factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
