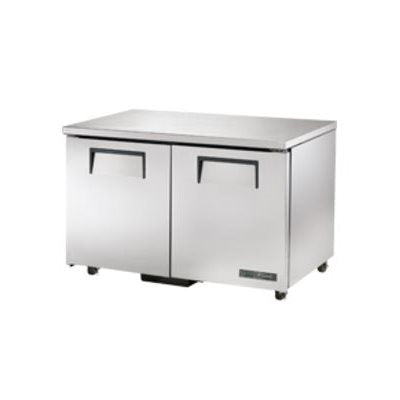

True 48" Undercounter Freezer with 2 Doors, ADA Compliant - TUC-48F-ADA

True's TUC-48F-ADA Undercounter Freezer with 2 Doors, ADA Compliant uses the highest quality materials and oversized refrigeration systems providing the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.

Refrigeration System

• Factory Engineered: Self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant, with zero (0) ozone depletion potential (ODP) and three (3) global warming potential (GWP).
• Oversized Refrigeration System: Factory balanced with guided airflow, ensuring uniform product temperatures.
• High Capacity Performance: Maintains -10°F (-23.3°C) temperatures, ideal for frozen foods and ice cream.
• Electronically Commutated Motors: State-of-the-art evaporator and condenser fan motors that operate at higher peak efficiencies, moving a consistent volume of air to produce less heat, reduce energy consumption, and enhance motor reliability.
• Maintenance Access: Condensing unit access is located in the back of the cabinet, and easily slides out for maintenance.
• Automatic Defrost System: Time-initiated and time-terminated for efficient operation.


Cabinet Construction

• Exterior: Constructed from stainless steel for the front, top, and ends, with a corrosion-resistant GalFan coated steel back.
• Interior: Features an attractive, NSF-approved clear-coated aluminum liner and a stainless steel floor with coved corners.
• Insulation: Entire cabinet structure and solid doors foamed-in-place using high-density polyurethane insulation, both having zero ODP and GWP.
• Mobility: Equipped with 3" (77 mm) diameter stem castors, with a work surface height of 34" (864 mm). Compliant with American Disabilities Act (ADA) requirements.


Doors

• Construction: Stainless steel exterior with clear aluminum liner to match cabinet interior.
• Handles: Each door is fitted with a 12" (305 mm) long recessed handle, foamed-in-place with a sheet metal interlock for permanent attachment.
• Sealing Mechanism: Positive seal self-closing doors with a 90° stay-open feature.
• Doors swing within cabinet dimensions.
• Cleaning Features: Magnetic door gaskets feature one-piece construction, removable without tools for easy cleaning.


Shelving

• Adjustable Shelves: Four (4) heavy-duty PVC coated wire shelves measuring 2 19/16"L x 16"D (548 mm x 407 mm), with four (4) chrome plated shelf clips included per shelf.
• Support Pilasters: Made of the same material as the cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.


Countertop Pan Capacity

• Standard Configuration: Comes standard with 16 (1/6 size) 6 7/8"L x 6 1/4"W x 4"D (175 mm x 159 mm x 102 mm) clear polycarbonate, NSF-approved food pans in the countertop prep area.
• Compatibility: Accommodates 6" (153 mm) and 8" (204 mm) deep food pans (supplied by others). Countertop pan opening designed for varying size pan configurations with available pan divider bars.


Model Features

• Corrosion Resistance: Evaporator is epoxy coated to prevent corrosion.
• Compliance: Meets NSF/ANSI Standard 7 requirements for open food products.


Electrical

• Pre-Wired: Unit is completely pre-wired at the factory, ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
