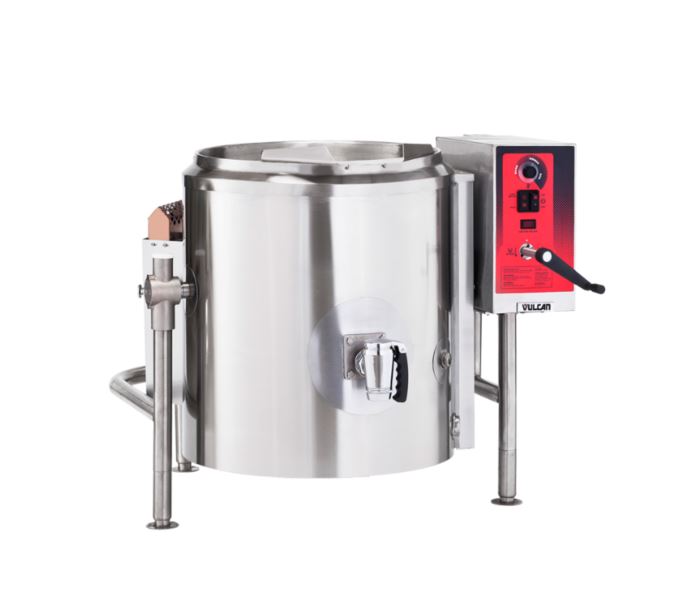

Vulcan 40 Gallon Stationary Steam Kettle, Natural Gas, 2/3 Steam Jacket
ITEM#: K40GL
Product Overview
The Vulcan 40-Gallon Stationary 2/3 Steam Jacketed Natural Gas Kettle provides powerful heating, durable construction, and reliable performance for high-volume commercial kitchens. With a stainless steel design, precision controls, and included cover and draw-off valve, it’s engineered for efficiency and safety when preparing soups, sauces, stews, gravies, pasta, and large-batch recipes.
Key Features
- 40-Gallon Capacity: High-volume capacity for bulk cooking applications.
- 2/3 Steam Jacket Design: Delivers even, consistent heating with faster cook times compared to stock pots.
- Efficient Gas Operation: Self-contained natural gas system with 100,000 BTU total input.
- Ellipsoidal Bottom: Fully welded type 316 stainless steel liner with 304 stainless steel exterior for strength and corrosion resistance.
- Heavy Bar Rim: Reinforced construction (⅜" x 1") for long-term durability on 40+ gallon kettles.
- Embossed Markings: Easy-to-read gallon and liter graduations inside kettle.
- Spring-Assisted Hinged Cover: Stainless steel cover with condensate ring, drop-down lift handle, and heavy-duty pivot assembly with yolk-style mount and tie bar.
- Draw-Off Valve: 2" compression tangent draw-off valve with perforated strainer for smooth portioning of liquids and chunky products.
- Precision Controls: Solid-state temperature control, ON/OFF power switch, power indicator light, vacuum/pressure gauge, pressure relief valve, low-water indicator, and automatic low-water shut-off.
- High-Pressure Jacket: 50 psi (3.4 kg/cm²) steam jacket rating for higher cooking temperatures.
- Water-Resistant Controls: Stainless steel enclosure protects components for reliability in kitchen environments.
- Stable Installation: Tubular stainless steel legs with flanged feet for secure floor mounting.
- Convenience Features: Built-in faucet bracket for accessories.
- Altitude Ready: Standard operation from sea level up to 8,999 ft (higher elevations available from factory).
- Warranty: One-year limited parts and labor coverage.
The Vulcan 40-Gallon Natural Gas Steam Jacketed Stationary Kettle combines capacity, efficiency, and rugged stainless steel construction — making it the ideal solution for large-scale commercial kitchens that require consistent results and long-term durability.
Retail Price:
Request a Quote
Why is the price hidden?
Specifications
| Item Number | K40GL |
| Exterior Width | 36 Inches |
| Exterior Depth | 23 Inches |
| Exterior Height | 39 Inches |
| Capacity | 40 Gallons |
| Style | Tilting |
| Voltage | 120 Volts |
| Hertz | 60 Hertz |
| Phase | 3 Phase |
| Total BTU | 100,000 BTU |
| Power Type | Natural Gas |
