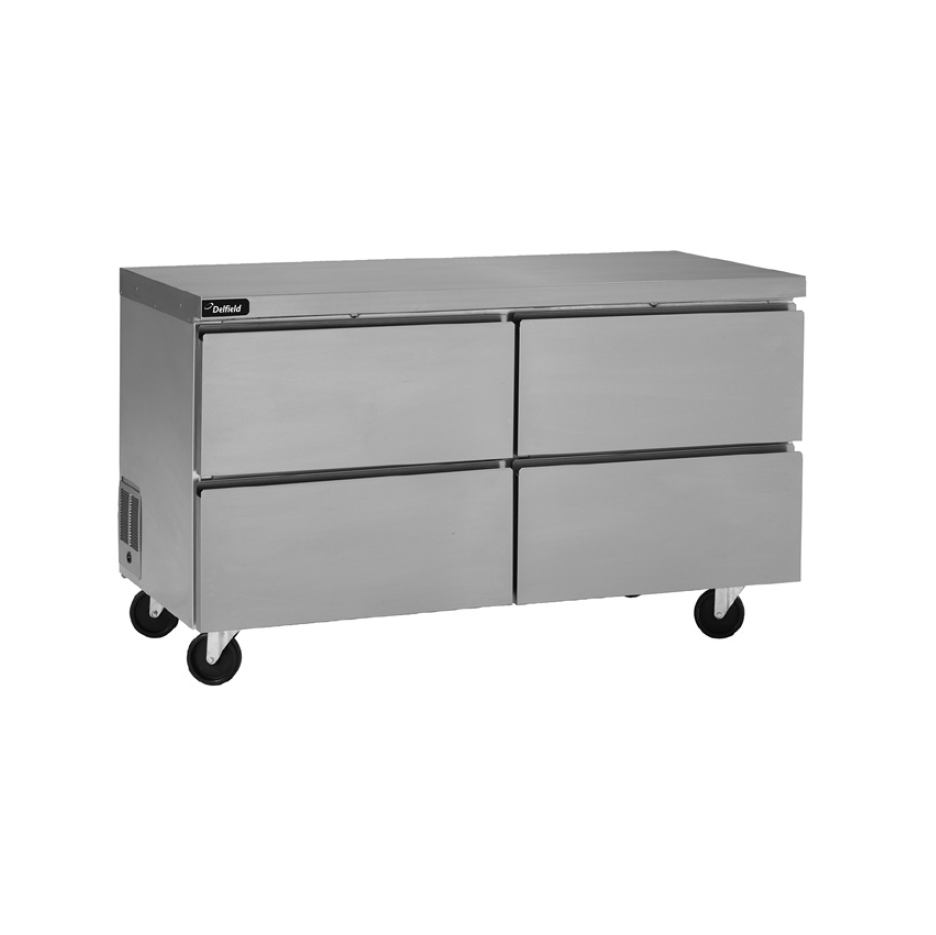

Delfield 48" Undercounter Refrigerator with 4 Drawers
ITEM#: GUR48P-D
Product Overview
EXTERIOR TOP is one-piece, stainless steel with integral 2.12” (5.4cm) square nosing on the front.
EXTERIOR BACK & BOTTOM is galvanized steel. Exterior ends are mill finish aluminum.
INTERIOR SIDES are gray coated aluminum. Interior bottoms are anodized aluminum. Base is fully insulated with high-density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane.
REFRIGERATION SYSTEM uses R290 refrigerant. Compressor is 1/5 H.P., with condenser coil and hot gas condensate evaporator mounted on rear of the cabinet. Evaporator coil is located on the interior rear wall of the cabinet. Refrigerant flow is controlled by a capillary tube. Cabinet maintains an interior cabinet temperature of 33°F to 40°F (2°C to 4°C).
SYSTEM is controlled using an electronic temperature control which provides improved pull-down times, reducing compressor cycling and longer compressor life with lower energy consumption. Control system uses adaptive defrost to assure evaporator coil is free of ice and operating at optimum efficiency. Evaporator condensate is eliminated using an energy-efficient hot gas system.
DIGITAL EXTERIOR TEMPERATURE DISPLAY is located on the back of the cabinet.
ELECTRICAL CONNECTION is 115 volt, 60 Hertz, single phase. Unit has a 8’ (2.4m) long electrical cord and NEMA 5-15P plug.
CASTERS 5” (13cm) diameter plate casters shipped loose with front two locking. Equipment clearance above the floor is 2.5” (6cm).
DRAWERS have stainless steel exterior with thermoformed ABS plastic interior liner. Drawer frames are stainless steel. Drawer slides are stainless steel with Delrin bearings. Pans are supplied by others.
Retail Price:
Request a Quote
Why is the price hidden?
Chat with us for more information
Mon-Fri 9:00am - 5:00pm EST
Call us today +1 416-814-6199
Mon-Fri 9:00am - 5:00pm EST
Specifications
| Exteriror Width | 48 Inches |
| Exterior Depth | 31.59 Inches |
| Exterior Height | 36 Inches |
| Door Type | Solid |
| Number Of Drawers | 4.0 |
| Capacity | 16 cu. Ft. |
| Casters | Yes (Add 5" to Height) |
| Construction | Stainless Steel |
| Amps | 3.2 Amps |
| Hertz | 60 Hertz |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| Warranty | 3 Years Parts & Labor, 5 Years Compressor Parts |
| Made In | USA |
